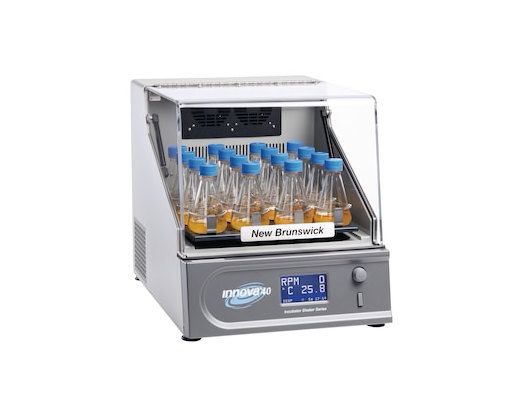

New Brunswick™ Innova® 40/40R
The Innova 40 and 40R (refrigerated) benchtop shakers provide years of dependable operation. This is the perfect shaker to begin working on small-scale projects with a view to increase volume or throughput. The self-supporting transparent lid allows samples to be in view all the time. The ability to shake flasks up to 3L in such a compact benchtop unit provides clear scope to upscale and options include a drip pan and remote alarm. The simple user interface allows for easy programming of speed, temperature, time. The VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.
Applications
- Grow bacterial, insect, yeast and plant cells in a controlled environment
- Screen culture media for optimal growth
- Grow seed cultures for fermenters/bioreactors
- Triple-eccentric counterbalanced drive in cast iron housing provides vibration and trouble-free operation for years
- Compact benchtop model– fits easily on the bench and holds flasks up to 3L
- Clear cover allows easy viewing of the cultures and lifts easily to access all samples
- Versatile accessory platform (sold separately) accommodates flasks up to 3L as well as test tube racks and microplate holders
- Certified. Meets cETL, UL, CSA and CE standards
| |
S171-103 |
| External depth (with lid/door open) |
101.6cm (40 inch) |
| Timer |
0.1 - 99.9h, continuous |
| Power Supply |
120V, 60Hz |
| Dimensions (W x D x H) |
55.9 × 76.2 × 61cm (22 x 30 x 24 inch) |
| Weight w/o accessories |
79.4kg (175 lb) |
| Temperature range |
15°C below ambient to 80°C (min 4°C) |
| Audible and visual alarms |
Yes |
| Temperature uniformity |
±0.25°C at 37°C |
| Available program modes |
Constant speed and temperature, Programmable multi-steps, RS-232 communication port |
| Drive mechanism |
Triple-eccentric counterbalanced drive |
| Memory |
Non volatile with automatic power failure restart |
| Motor Type |
Solid state, DC brushless motor |
| Platform Size |
46 × 46cm (18 × 18 inch) |
| Refrigerated |
Yes |
| Slide-out Platform |
No |
| Space-saving glide-up doors |
No |
| Speed Range |
25 - 500 rpm |
| Multi-step programming |
Yes |
| Steps per program |
15 |
| Stored programs |
4 |
| cETLus and CE marked |
Yes |
| Agitation Orbit |
1.9cm (0.75 inch) |
