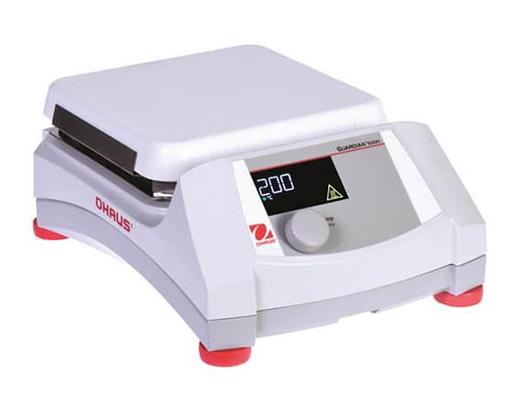

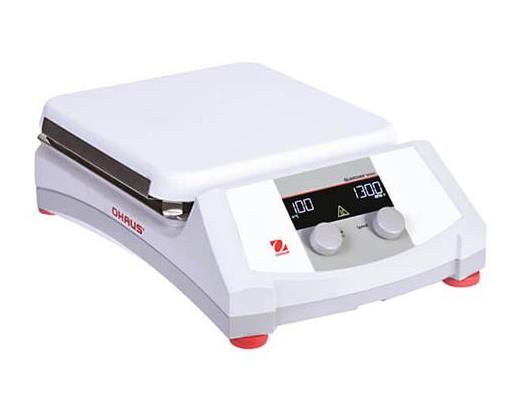

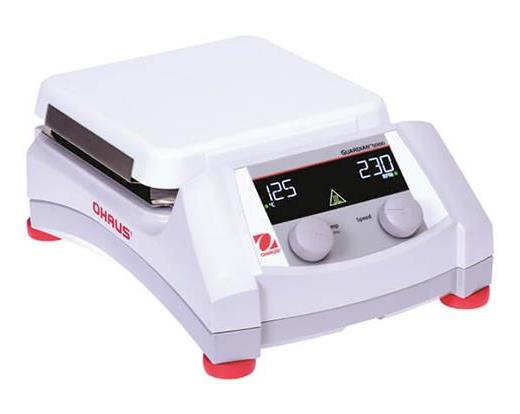

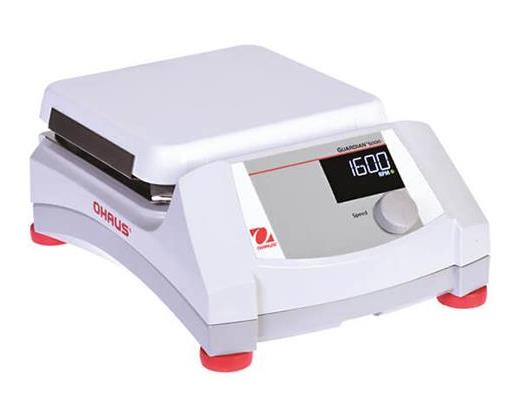

Hotplates, Hotplate Stirrers, Guardian 5000™
Reliable Hotplate Stirrers with Exceptional Safety Features for Everyday Use
The Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.
- Applications- Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
- Display- Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon
- Operation- Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8cm) PTFE coated stir bar
- Construction- Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops
- Design Features- Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints
| |
H197-8 |
H197-9 |
H197-10 |
H197-11 |
H197-12 |
| Function |
Heating |
Stirring |
Heating and Stirring |
| Capacity |
15L |
18L |
20L |
| Plate Construction |
Ceramic |
Aluminum |
| Plate Size |
7x7 inch (178x178mm) |
10x10 inch (254x254mm) |
5.3 inch (135mm) |
| Temperature Range |
Ambient +5°C-500°C |
N/A |
Ambient +5°C-500°C |
Ambient +5°C-380°C |
| Speed Range |
N/A |
60 – 1,600rpm |
| Calibration |
Temperature calibration 3 plate/3 probe |
Temperature calibration |
| Control |
Digital |
| Dimensions (HxLxW) |
4.8 x 12.2 x 8.8inch (122 x 309 x 223mm)
|
4.8x16.3x11.25inch
(122x415x286mm) |
5x10.5x6.8 inch
(126x267x173mm) |
| Display |
Custom Backlit LCD |
| In-use cover |
Available as an Accessory |
| Net Weight |
5.7 lb (2.6kg) |
11.5 lb (5.2kg) |
5.7 lb (2.6kg) |
| Power |
120V/10A/50/60Hz |
120V/1.0A/50/60Hz |
120V/10A/50/60Hz |
120V/11.2A/50/60Hz |
120V/8.3A/50/60Hz |
| Power Consumption |
1080W |
108W |
1080W |
1210W |
896W |
| Safety Certification |
TUV |
| Speed Stability |
N/A |
±2% |
| Temperature probe |
Available as an Accessory |
| Temperature Stability |
±3% Plate, below 100°C ±2°C and ±1% Probe, below 100°C ±1°C |
| Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
