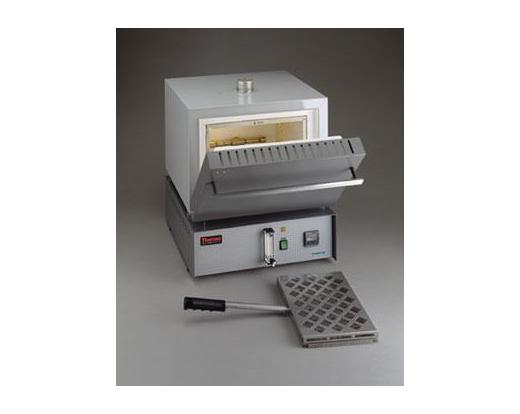

Thermolyne Atmosphere Controlled Ashing Furnaces, Thermo Scientific

Thermo Scientific<sup>TM</sup> Thermolyne Atmosphere Controlled Ashing Furnace is ideal for coal and coke ashing procedures. The Thermo Scientific Thermolyne Atmosphere Controlled Ashing Furnace reaches 975°C with the standard stainless-steel manifold and 1093°C with the optional inconel manifold.

  • Adjustable gas flowmeter/valve (0-80L/min.) on front for easy access when adjusting the airflow rate
  • Stainless-steel manifold at rear chamber prewarms incoming gases, provides a maximum temperature gradient of only ±3°C at 750°C
  • Chamber rear has a 0.95cm (0.38 in.) dia. port for monitoring chamber temperatures with independent measuring devices
  • With 0.64cm (0.25 in.) I.D. or 0.96cm (0.375 in.) O.D. hose barb (in chamber rear) for inert gas line
Type F6000
  • With two dual-purpose stainless-steel trays and handle to accommodate 24 (30mL) porcelain crucibles or 38 (10mL) quartz crucibles
Type F6000-60
  • Meets ASTM* D3174 specifications: 3 to 4 air exchanges per min.
  • Heating rate of 8°C/min. to 500°C, 6°C/min. from 500° to 750°C
  • Holds at 750°C for two hours, then turns off

Required Accessories: Electrical connection requires fixed wiring (power cord not provided).

Compatible with:
  • Stainless-steel shelf (SH408X1)
  • Stainless-steel flexible exhaust tubing kit with mounting hardware (AY408X1A)
GSA


Warranty and Service Offering: 12 months

Certifications: CSA certified, CE marked as indicated.

Max. Temperature 975°C
Holds 24 (30mL) porcelain or 38 (10mL) quartz crucibles

Catalog Number
(Manufacturer No.)
Capacity Interior D x W x H Exterior L x W x H Control Electrical Requirements Amperage Power Consumption
F951-2
(F6020C-33-60)†‡
14L (0.5 cu.ft.) 25 x 33 x 18cm (10 x 12.8 x 6.8 in.) 51 x 49 x 53cm (20 x 19.1 x 21 in.) Digital single setpoint w/ramp and dwell (B1) 240V 18.3A 4400w
F951-3
(F6028C-60)†
14L (0.5 cu.ft.) 25 x 33 x 18cm (10 x 12.8 x 6.8 in.) 51 x 49 x 53cm (20 x 19.1 x 21 in.) Digital single setpoint w/ramp and dwell (B1) 208V 19.2A 4000w
F951-5
(F6020C-33-60-80)†‡
14L (0.5 cu.ft.) 25 x 33 x 18cm (10 x 12.8 x 6.8 in.) 51 x 49 x 53cm (20 x 19.1 x 21 in.) Digital programmable w/1 program, 8 segments (C1) 240V 18.3A 4400w
F951-6
(F6028C-60-80)†
14L (0.5 cu.ft.) 25 x 33 x 18cm (10 x 12.8 x 6.8 in.) 51 x 49 x 53cm (20 x 19.1 x 21 in.) Digital programmable w/1 program, 8 segments (C1) 208V 19.2A 4000w
F951-8
(F6030CM-33-60)†‡
14L (0.5 cu.ft.) 25 x 33 x 18cm (10 x 12.8 x 6.8 in.) 51 x 49 x 53cm (20 x 19.1 x 21 in.) Digital programmable w/4 programs, 16 segments each (D1) 240V 18.3A 4400w
F953-1
(F30420C-60-80)†
45L (1.6 cu.ft.) 36 x 36 x 36cm (14 x 14 x 14 in.) 65 x 55 x 75cm (25.5 x 21.5 x 29.5 in.) Digital programmable w/1 program, 8 segments (C1) 240V 22.9A 5500w
F953-2
(F30420-33-60-80)‡
45L (1.6 cu.ft.) 36 x 36 x 36cm (14 x 14 x 14 in.) 65 x 55 x 75cm (25.5 x 21.5 x 29.5 in.) Digital programmable w/1 program, 8 segments (C1) 240V 22.9A 5500w
F953-3
(F30428C-60-80)†
45L (1.6 cu.ft.) 36 x 36 x 36cm (14 x 14 x 14 in.) 65 x 55 x 75cm (25.5 x 21.5 x 29.5 in.) Digital programmable w/1 program, 8 segments (C1) 208V 23.4A 5500w
F953-4
(F30430CM-60)†
45L (1.6 cu.ft.) 36 x 36 x 36cm (14 x 14 x 14 in.) 65 x 55 x 75cm (25.5 x 21.5 x 29.5 in.) Digital programmable w/4 programs, 16 segments each (D1) 240V 22.9A 5500w
F953-5
(F30430CM-33-60)†‡
45L (1.6 cu.ft.) 36 x 36 x 36cm (14 x 14 x 14 in.) 65 x 55 x 75cm (25.5 x 21.5 x 29.5 in.) Digital programmable w/4 programs, 16 segments each (D1) 240V 22.9A 5500w
F953-6
(F30438CM-60)†
45L (1.6 cu.ft.) 36 x 36 x 36cm (14 x 14 x 14 in.) 65 x 55 x 75cm (25.5 x 21.5 x 29.5 in.) Digital programmable w/4 programs, 16 segments each (D1) 208V 23.4A 5500w
† CSA approved.
‡ Ce marked.
GSA Link

Ordering Info

Cat No Model NoPowerTemp RangeTemp Control Group Qty Price Qty UOM
F951-2 F6020C-33-60240V - 18.3A - 4400W (CE marked)100-975°CB In Stock 1 $6,911.00 EA
F951-3 F6028C-60208V - 19.2A - 4000W100-975°CB In Stock 1 $6,792.00 EA
F951-5 F6020C-33-60-80240V - 18.3A - 4400W (CE marked)100-975°CC In Stock 1 $7,784.00 EA
F951-6 F6028C-60-80208V - 19.2A - 4000W100-975°CC In Stock 1 $7,729.00 EA
F951-8 F6030CM-33-60240V - 18.3A - 4400W (CE marked)100-975°CD In Stock 1 $8,852.00 EA
F953-1 F30420C-60-80240V - 22.9A - 5500W100-975°CC In Stock 1 $10,639.00 EA
F953-2 F30420C-33-60-80240V - 22.9A - 5500W (CE marked)100-975°CC In Stock 1 $10,279.00 EA
F953-3 F30428C-60-80208V - 23.4A - 5500W100-975°CC In Stock 1 $10,595.00 EA
F953-4 F30430CM-60240V - 22.9A - 5500W100-975°CD In Stock 1 $11,021.00 EA
F953-5 F30430CM-33-60240V - 22.9A - 5500W (CE marked)100-975°CD In Stock 1 $11,446.00 EA
F953-6 F30438CM-60208V - 23.4A - 5500W100-975°CD In Stock 1 $11,436.00 EA

Options

Cat No Description Qty/UOM Price Qty UOM

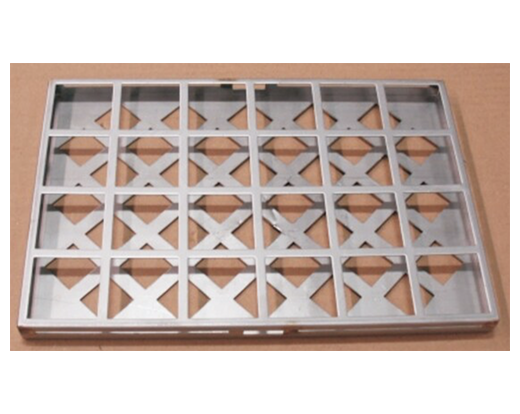

F951-24 Additional Dual-purpose Stainless Steel Crucible Trays, 12.75 x 10 x 6.75 inches In Stock 1 $156.00 EA
F950-21 Stainless Steel Shelf for Type F6000-60 In Stock 1 $70.40 EA
F951-23 Handle for Shelf In Stock 1 $49.50 EA
F953-22 Refractory Shelf for Type F30400-60 In Stock 1 $100.00 EA
F951-21 Inconel manifold for F6000 furnace for temperatures up to 1093°C In Stock 1 $1,968.00 EA
F951-22 Stainless Steel Flexible Exhaust Tubing Kit, 2.5" ID x 5' long for venting fumes to proper exhaust system, plus mounting hardware In Stock 1 $452.00 EA
F953-21 Inconel manifold for F30400 furnace for temperatures up to 1093°C In Stock 1 $1,344.00 EA
