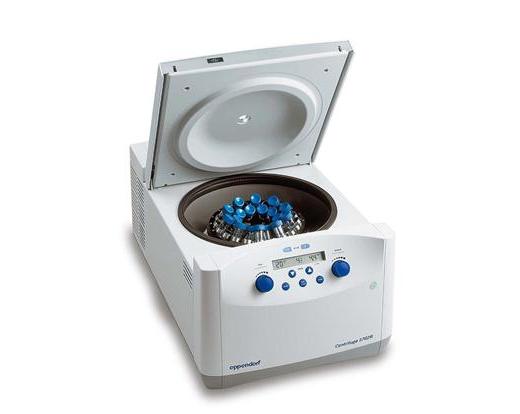

Centrifuges, Refrigerated, Model 5702R, Eppendorf®

All 5702 models can be used in a range of settings, from the clinical lab to the cell culture lab. With various fixed-angle and swing-bucket rotors available, they can accommodate almost any kind of tube.

This model has all the product characteristics that make refrigerated Eppendorf® centrifuges so outstanding.

You can quickly reach the desired temperature by using the “Fast Temp” function. Likewise, standby refrigeration will maintain a particular temperature following use. Precise centrifugation is made possible through the “At Set rpm” function: time is counted down once the set rpm is reached; and as a result, different centrifugal runs can be more easily reproduced.

Another advantage is that we have designed all rotors within the 5702 line to be interchangeable.

Features
Specifications
Resources

Large dials and an easy-to-read display
Switch between rpm and rcf
Speed can be set from 100 rpm to max. 4,400 rpm, in increments of 100 rpm
Separate Short Spin button
Timer can be set for up to 99 minutes
Continuous mode can be selected
Two programming keys to store routine procedures
Separate Fast Temp function
Adjustable from –9°C to 40°C
Standby refrigeration
Silent running
“At Set rpm” function
Blue back-lit display
SOFT brake function for delicate samples. Optimized braking ramp for isolation of mononuclear blood cells using Ficoll density gradient centrifugation

Speed	100-4,400 rpm(in 100rpm increments)
Maximum rcf	3,000 x g
Timer	0–99 min, with hold mode
Power supply	120V/60Hz / 230V/50Hz
Maximum power requirement	380W
Dimensions (W x D x H)	15 x 22.8 x 10.2 inch / 38 x 58 x 26cm
Weight	78 lb/36 kg

Ordering Info

Cat No	Vendor Part No	Model	Description	Power	Qty	Price	Qty
C166-14	022626205	5702R	Centrifuge 5702R, refrigerated, without motor	120V 60Hz	In Stock	1	$7,404.00	EA
C166-10	022626256	5702R	Centrifuge 5702R, refrigerated, without motor	230V 50Hz	In Stock	1	$7,404.00	EA
C166-65	022629905	5702R	Centrifuge 5702R, refrigerated, with 4 x 85mL swing-bucket rotor	120V 60Hz	In Stock	1	$8,009.00	EA
C166-102	022628012	5702R	Centrifuge 5702R. Clinical packege: includes a 4 x 100mL swing-bucket rotor with round buckets, 4 adapters for blood tubeswith an outer diameter of 13mm (2 x 022639242) and 4 adapters for 16mm tubes (2 x 022639269)	120V 60Hz	In Stock	1	$8,896.00	EA
C166-103	022628113	5702R	Centrifuge 5702R. Cell culture package: includes a 4 x 100mL swing-bucket rotor with round buckets, 4 adapters for 15 mL conical tubes (2 x 022639200) and 4 adapetrs for 50mL conical tubes (2 x 022639226)	120V 60Hz	In Stock	1	$8,896.00	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
C166-49	022639404	Rotor, F-35-30-17, fixed-angle rotor 30 x 15mL, includes 20 adapters Falcon-tubes, and 30 rubber mats	In Stock	1	$1,189.29	EA
C166-97	022639421	Rotor, F-35-30-17, fixed-angle rotor 10 x 15mL, includes 10 adapters Falcon-tubes, and 10 rubber mats	In Stock	1	$728.57	EA
C166-98	022639480	Rotor, F-45-18-17 Cryo without lid, without adapters	In Stock	1	$906.43	EA
C166-99	022639471	Rotor, 45-24-11 Fixed-angle rotor 24 x 1.5 / 2mL, without lid	In Stock	1	$785.36	EA
C166-101	022639501	Rotor A-8-17 Swing-bucket rotor 8 x 15mL	In Stock	1	$447.86	EA
C166-13	022639048	Swing bucket Rotor (A-4-38) with 4 x 100mL round buckets for volumes up to 100mL. Max speed 4,400 rpm (3,000 x g)	In Stock	1	$1,120.71	EA
C166-100	022639064	Swing bucket Rotor (A-4-38) without buckets	In Stock	1	$454.29	EA
C166-23	022639081	Round bucket 100mL, for Rotor A-4-38 (C166-13 & C166-100), set of 4	In Stock	1	$1,017.86	EA
C166-18	022639102	Adapter, 5 round-bottom tubes 2-7mL, 100mL round bucket in Rotor A-4-38 (C166-13 & C166-100)	In Stock	2	$454.29	PK
C166-19	022639242	Adapter, 2.6-7mL, round bucket, for rotor A-4-38 (C166-13)	In Stock	2	$454.29	PK
C166-20	022639269	Adapter, 4-10mL, round bucket, for rotor A-4-38 (C166-13)	In Stock	2	$454.29	PK
C166-24	022639200	Adapter, 2 x 15mL conical, round bucket, for rotor A-4-38 (C166-13), sold 2 each	In Stock	1	$454.29	EA
C166-50	022639226	Adapter, 50mL conical, round bucket, for rotor A-4-38 (C166-13), sold 2 each	In Stock	1	$251.79	EA
C166-113	022639188	Adapter, 1 conical tubes 15mL, for 100mL round bucket in Rotor A-4-38 (C166-13)	In Stock	2	$251.79	PK
C166-114	022639129	Adapter, 4 round-bottom tubes 9-15mL, for 100mL round bucket in Rotor A-4-38 (C166-13)	In Stock	2	$454.29	PK
