Centrifuges, Multi-function Pro Centrifuge, Frontier™ 5000

home > centrifuge > centrifuges > centrifuges, multi-function pro centrifuge, frontier™ 5000

Email Print Recently Viewed

You have not viewed any products recently.

View Larger

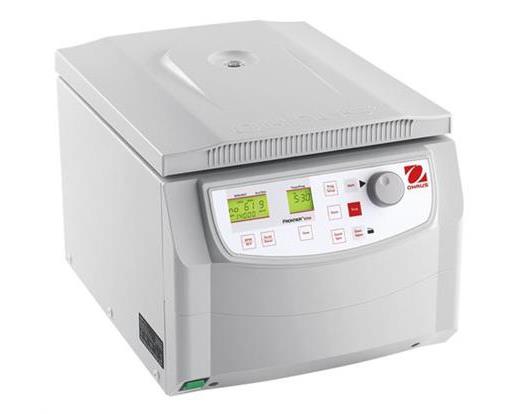

Centrifuges, Multi-function Pro Centrifuge, Frontier™ 5000

Powerful and Versatile Universal Centrifuges
Virtually Every Lab Application, Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 7 models with capacities from 0.2mL to 4 x 750mL, they feature high-speed performance at maximum volume, automatic rotor identification, and safety features.

Rotor Compatibility for Refrigerated Models
Model 5716, C171-3
Swing out 4x750mL ID Sealable; Rotor Angle 4x500mL ID; Angle 6x250mL FB ID; Swing out 4x100mL ID; Swing out 4x100mL ID Sealable; Swing out 2x3MTP ID; Angle 6x85mL RB ID Hi; Angle 6x85mL RB ID; Angle 4x85mL RB ID Hi; Angle 10x50mL FA ID; Angle 6x50mL RB ID Hi; Angle 6x50mL RB/FA ID; Angle 30x15mL RB/FA ID; Angle 20x10mL RB ID Hi; Angle 12x15mL RB/FA ID; Angle 44x1.5/2.0mL ID; Angle 30x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID; Angle 12x1.5/2.0mL ID; Angle 64x0.5mL ID; Angle 4x8-w PCR Strip ID

Model 5718, C171-5
Swing out 4x100mL ID; Swing out 4x100mL ID Sealable; Swing out 2x3MTP ID; Angle 6x85mL RB ID Hi; Angle 6x85mL RB ID; Angle 4x85mL RB ID Hi; Angle 10x50mL FA ID; Angle 6x50mL RB ID Hi; Angle 6x50mL RB/FA ID; Angle 30x15mL RB/FA ID; Angle 20x10mL RB ID Hi; Angle 12x15mL RB/FA ID; Angle 44x1.5/2.0mL ID; Angle 30x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID; Angle 12x1.5/2.0mL ID; Angle 64x0.5mL ID; Angle 4x8-w PCR Strip ID

Model 5816, C171-7
Swing out 4x250mL ID; Swing out 2x3MTP ID; Swing out 16x50mL ID; Angle 6x250mL FB ID; Angle 6x85mL RB ID; Angle 4x85mL RB ID Hi; Angle 10x50mL FA ID; Angle 6x50mL RB ID Hi; Angle 30x15mL RB/FA ID; Angle 20x10mL RB ID Hi; Angle 44x1.5/2.0mL ID; Angle 24x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID

Features
Specifications

Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories.
The intuitive design of the centrifuges and accessories enables easy access to parameter settings and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
The performance of these centrifuges is propelled by German engineering and high quality components for reliable use. Constructed from chemical-resistant stainless steel to ensure durability in lab use.

	C171-1	C171-2	C171-4	C171-6
Speed Range	200 – 14,000rpm	200 – 16,000rpm	200 – 18,000rpm	200 – 15,000rpm
Max Relative Centrifuge Force (x g)	18,624g	24,325g	23,542g	21,379g
Maximum Cap (Rotor)	4 x 100mL	4 x 750mL	4 x 100mL	6 x 250mL
Program memories	99
Rotor In Package	Not applicable
Acceleration Gear	10
Deceleration Gear	10
Dimensions (HxLxW)	12.99 x 19.41 x 14.25" (330 x 493 x 362mm)	15.4 x 26.4 x 21.3" (390 x 670 x 540mm)	13.82 x 19.65 x 16.06" (351 x 499 x 408mm)	13.94 x 21.18 x 17.56" (354 x 538 x 446mm)
Display	LCD with backlight	2-line, backlit LCD	LCD with backlight
Lid lock	Mechanical	Motor driven
Net Weight	66 lb (30kg)	187 lb (85kg)	95 lb (43kg)	115 lb (52kg)
Noise Level	≤63±2 dB(A)		≤60±2 dB(A)	≤61±2 dB(A)
Power	AC Power (Included)
Power Consumption	300W	680W	475W	520W
Pre-cool time	Not applicable
Rotor Compatibility	Swing out 4 x 100mL ID; Swing out 4 x 100mL ID Sealable; Swing out 2 x 3MTP ID; Angle 6 x 50mL RB/FA ID; Angle 30 x 15mL RB/FA ID; Angle 12 x 15mL RB/FA ID; Angle 30 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID		Swing out 4 x 100mL ID; Swing out 4 x 100mL ID Sealable; Swing out 2 x 3MTP ID; Angle 6 x 50mL RB/FA ID; Angle 30 x 15mL RB/FA ID; Angle 12 x 15mL RB/FA ID; Angle 30 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID; Angle 12 x 1.5/2.0mL ID; Angle 64 x 0.5mL ID; Angle 4 x 8-w PCR Strip
Rotor Rec Method	Auto
Running Time	Quickspin; 10 sec to 99 h 59 min 59 sec; Continous
Safety Cert.	CE; FCC
Working Environment	36 – 95°F, 80%RH, non-condensing (2 – 35°C, 80%RH, non-condensing)

Ordering Info

Cat No	Model	Rotor	Speed	Power	Qty	Price	Qty
C171-1	MultiPro 5714	4 x 100mL	200-14,000rpm	120V / 300W	In Stock	1	$3,850.00	EA
C171-2	MultiPro 5716	4 x 750mL	200-16,000rpm	120V / 680W	In Stock	1	$8,766.00	EA
C171-3	MultiPro 5716 Refrigeration	4 x 750mL	200-16,000rpm	120V / 1750W	In Stock	1	$12,374.00	EA
C171-4	MultiPro 5718	4 x 100mL	200-18,000rpm	120V / 475W	In Stock	1	$5,852.00	EA
C171-5	MultiPro 5718 Refrigeration	4 x 100mL	200-18,000rpm	120V / 660W	In Stock	1	$8,517.00	EA
C171-6	MultiPro 5816	6 x 250mL	200-15,000rpm	120V / 520W	In Stock	1	$6,721.00	EA
C171-7	MultiPro 5816 Refrigeration	6 x 250mL	200-16,000rpm	120V / 850W	In Stock	1	$9,951.00	EA
