Balances, Washdown Scale, SC / SE Series, A&D Weighing
View Larger

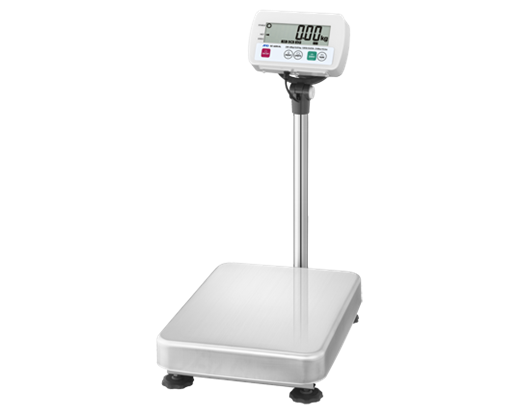

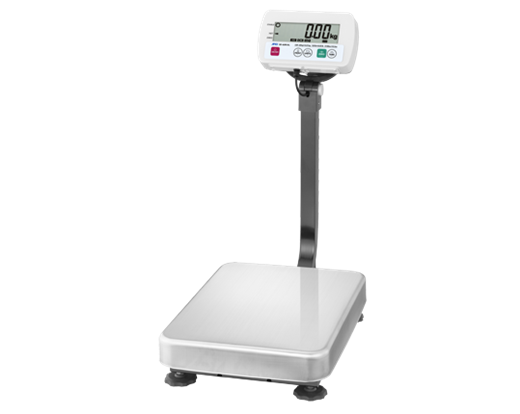

Balances, Washdown Scale, SC / SE Series, A&D Weighing
The SC and SE Series bench scales are constructed with a completely sealed indicator and a washdown base that meets IP68 standards. They provide exceptional performance with a stabilization speed of just 1 second.
- IP68 dust and water-proof
- Washdown construction for easy cleaning
- 4500 hours of continuous operation with 6D batteries (not included)
- Supersized LCD of 39mm character height
- Easily switchable, multiple weighing units (kg, lb, oz, and pcs)
- Stabilization speed of 1 second
- Stainless steel weighing pan
- Waterproof and corrosion-resistant load cell (aluminum anodized and coated with epoxy resin with protective silicon over wiring)
- Quick USB interface (cables not included) or RS-232C + comparator relay output available as options
- Stainless Steel Construction (SC-series) and Mild Steel Construction (SE-series)
| Catalog No. |
B144-48 /
B144-53 |
B144-49 /
B144-54 |
B144-50 /
B144-55 |
B144-51 /
B144-56 |
B144-52 /
B144-57 |
| Model No. |
SC-30KAM /
SE-30KAM |
SC-60KAM /
SE-60KAM |
SC-150KAM /
SE-150KAM |
SC-60KAL /
SE-60KAL |
SC-150KAL /
SE-150KAL |
| lb |
Capacity |
66 |
130 |
330 |
130 |
330 |
| Min. Display |
0.02
0.01* |
0.05
0.02* |
0.1
0.05* |
0.05
0.02* |
0.1
0.05* |
| oz |
Capacity |
1050 |
2100 |
5200 |
2100 |
5200 |
| Min. Display |
0.5
0.2* |
1
0.5* |
2
1* |
1
0.5* |
2
1* |
| kg |
Capacity |
30 |
60 |
150 |
60 |
150 |
| Min. Display |
0.01
0.005* |
0.02
0.01* |
0.05
0.02* |
0.02
0.01* |
0.05
0.02* |
Sample Qty
(for counting) |
5 pieces (can be changed to 10,20, 50 or 100) |
| Maximum count |
60,000 pcs |
60,000 pcs |
75,000 pcs |
60,000 pcs |
75,000 pcs |
| Minimum unit weight |
0.0005kg |
0.001kg |
0.002kg |
0.001kg |
0.002kg |
| Repeatability (Std. deviation) |
0.005kg |
0.01kg |
0.02kg |
0.01kg |
0.02kg |
| Linearity |
±0.01kg |
±0.02kg |
±0.05kg |
±0.02kg |
±0.05kg |
| Sensitiviy drift |
±20 ppm / °C (5°C to 35°C / 41°F to 95°F) |
| Display |
7 segment LCD display (character height 39mm) |
| Dispay update |
10 times per second |
| Operating condtions |
-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing) |
| Power supply |
Size D batteries x 6, Approximately 4,500 hours using alkaline
batteries (models are battery power only) |
| Weighing pan size |
300 x 380mm / 11.8 x 15 inch |
390 x 530 mm /15.4 x 20.9 inch |
| Dimensions (W x D x H) |
300 x 582 x 722mm /
11.8 x 22.9 x 28.4 inch |
390 x 732 x 722mm /
15.4 x 28.8 x 28.4 inch |
| Weight (approximetely) |
26.5 lb / 12 kg |
35.3 lb / 16 kg |
| Calibration weight* |
60 lb / 30 kg |
120 lb / 60 kg |
300 lb /150 kg |
120 lb / 60 kg |
300 lb /150 kg |
*factory settings
Ordering Info
| Cat No |
Vendor Part No |
Capacity | Resolution | Platform Size |
Qty |
Price |
Qty |
UOM |
| B144-48 |
SC-30KAM |
66 lb / 30kg | 0.01 lb / 0.005kg | 11.8" x 15" |
In Stock |
1 |
$1,690.00 |
|
EA |
| B144-49 |
SC-60KAM |
130 lb / 60kg | 0.02 lb / 0.01kg | 11.8" x 15" |
In Stock |
1 |
$1,750.00 |
|
EA |
| B144-50 |
SC-150KAM |
330 lb / 150kg | 0.05 lb / 0.02kg | 11.8" x 15" |
In Stock |
1 |
$1,780.00 |
|
EA |
| B144-51 |
SC-60KAL |
130 lb / 60kg | 0.02 lb / 0.01kg | 15.4" x 20.9" |
In Stock |
1 |
$1,820.00 |
|
EA |
| B144-52 |
SC-150KAL |
330 lb / 150kg | 0.05 lb / 0.02kg | 15.4" x 20.9" |
In Stock |
1 |
$1,850.00 |
|
EA |
| B144-53 |
SE-30KAM |
66 lb / 30kg | 0.01 lb / 0.005kg | 11.8" x 15" |
In Stock |
1 |
$1,140.00 |
|
EA |
| B144-54 |
SE-60KAM |
130 lb / 60kg | 0.02 lb / 0.01kg | 11.8" x 15" |
In Stock |
1 |
$1,150.00 |
|
EA |
| B144-55 |
SE-150KAM |
330 lb / 150kg | 0.05 lb / 0.02kg | 11.8" x 15" |
In Stock |
1 |
$1,250.00 |
|
EA |
| B144-56 |
SE-60KAL |
130 lb / 60kg | 0.02 lb / 0.01kg | 15.4" x 20.9" |
In Stock |
1 |
$1,220.00 |
|
EA |
| B144-57 |
SE-150KAL |
330 lb / 150kg | 0.05 lb / 0.02kg | 15.4" x 20.9" |
In Stock |
1 |
$1,280.00 |
|
EA |
