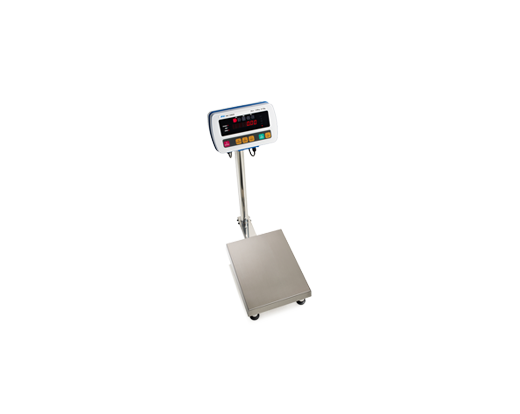

Balances, High Pressure Washdown Scales, SW Series, A&D Weighing
The SW of High Pressure Washdown Scales are IP-69K rated and designed to withstand cleaning at temperatures up to 175°F and pressures up to 1450 psi. The SW is ideal for use in facilities where cleanliness and sanitary processing are of prime importance, especially in food processing plants.
- IP69K - the highest level of dust and water-proofing
- Ultimate protection against the effects of condensation
- Streamlined construction for easy cleaning
- Stainless steel weighing pan, frame, and hermetically sealed load cell
- Rugged and adjustable indicator bracket
| Catalog No. |
B144-10 |
B144-14 |
B144-15 |
B144-16 |
B144-17 |
B144-18 |
B144-19 |
B144-20 |
| Model No. |
SW-6KS |
SW-15KS |
SW-15KM |
SW-30KM |
SW-60KM |
SW-150KM |
SW-60KL |
SW-150KL |
| lb |
Capacity |
13 |
33 |
33 |
66 |
130 |
330 |
130 |
330 |
| Min. display |
0.005 |
0.01 |
0.01 |
0.02 |
0.05 |
0.1 |
0.05 |
0.1 |
| 0.002 |
0.005 |
0.005 |
0.01 |
0.02 |
0.05 |
0.02 |
0.05 |
| 0.001 |
0.002 |
0.002 |
0.005 |
0.01 |
0.02 |
0.01 |
0.02 |
| oz |
Capacity |
210 |
520 |
520 |
1050 |
2100 |
5200 |
2100 |
5200 |
| Min. display |
0.1 |
0.2 |
0.2 |
0.5 |
1 |
2 |
1 |
2 |
| 0.05 |
0.1 |
0.1 |
0.2 |
0.5 |
1 |
0.5 |
1 |
| 0.02 |
0.05 |
0.05 |
0.1 |
0.2 |
0.5 |
0.2 |
0.5 |
| kg |
Capacity |
6 |
15 |
15 |
30 |
60 |
150 |
60 |
150 |
| Min. display |
0.002 |
0.005 |
0.005 |
0.01 |
0.02 |
0.05 |
0.02 |
0.05 |
| 0.001 |
0.002 |
0.002 |
0.005 |
0.01 |
0.02 |
0.01 |
0.02 |
| 0.0005 |
0.001 |
0.001 |
0.002 |
0.005 |
0.01 |
0.005 |
0.01 |
| g |
Capacity |
6000 |
15000 |
15000 |
30000 |
− |
− |
− |
− |
| Min. display |
2 |
5 |
5 |
10 |
− |
− |
− |
− |
| 1 |
2 |
2 |
5 |
− |
− |
− |
− |
| 0.5 |
1 |
1 |
2 |
− |
− |
− |
− |
| lb- oz |
Capacity |
13 |
33 |
33 |
66 |
130 |
330 |
130 |
330 |
| |
Min. display |
0.1 |
0.1 |
0.1 |
0.1 |
1 |
1 |
1 |
1 |
| Catalog No. |
B144-10 |
B144-14 |
B144-15 |
B144-16 |
B144-17 |
B144-18 |
B144-19 |
B144-20 |
| Model No. |
SW-6KS |
SW-15KS |
SW-15KM |
SW-30KM |
SW-60KM |
SW-150KM |
SW-60KL |
SW-150KL |
| Number of samples |
5 (can be changed to 10, 20, 50 or 100) pieces |
| Maximum count |
120,000 pcs |
150,000 pcs |
150,000 pcs |
150,000 pcs |
120,000 pcs |
150,000 pcs |
120,000 pcs |
150,000 pcs |
| Minimum unit weight |
0.05g |
0.1g |
0.1g |
0.2g |
0.5g |
0.1g |
0.5g |
0.1g |
Repeatability
(standard deviation) |
0.002 lb |
0.005 lb |
0.005 lb |
0.01 lb |
0.02 lb |
0.05 lb |
0.02 lb |
0.05 lb |
| Linearity |
±0.005 lb |
±0.01 lb |
±0.01 lb |
±0.02 lb |
±0.05 lb |
±0.01 lb |
±0.05 lb |
±0.1 lb |
| Sensitivity drift |
±20 ppm / °C (5°C to 35°C / 41°F to 95°F) |
| Display |
Display of weight: 7 segment LED display (character height 14.6 mm) Comparator light, Red/Yellow/Green/Yellow/Red LED |
| Display update |
10 times per second |
| Operating conditions |
-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non- condensing) |
| Power supply |
AC main (100V~240V) or SLA Battery (option), Approximately 90 hours operation |
| Weighing pan size |
250 x 250mm / 9.8 x 9.8 inch |
300 x 380mm / 11.8 x 15.0 inch |
390 x 530mm / 15.4 x 20.9 inch |
Dimensions
(W x D x H) |
250 x 480 x 353.5mm
9.8 x 18.9 x 13.9 inch |
390 x 751 x 722.5mm
11.8 x 23.7 x 28.4 inch |
390 x 751 x 722.5mm
15.4 x 29.6 x 28.4 inch |
| Weight (approximately) |
7.7kg / 17.0 lb |
13.0kg / 28.7 lb |
16.2kg / 35.7 lb |
| Shipping Weight |
11kg / 25 lb |
17.4kg / 39 lb |
22.1kg / 49 lb |
| Calibration weight |
6kg |
15kg |
15kg |
30kg |
60kg |
150kg |
60kg |
150kg |
| |
12 lb |
30 lb |
30 lb |
60 lb |
120 lb |
300 lb |
120 lb |
300 lb |
