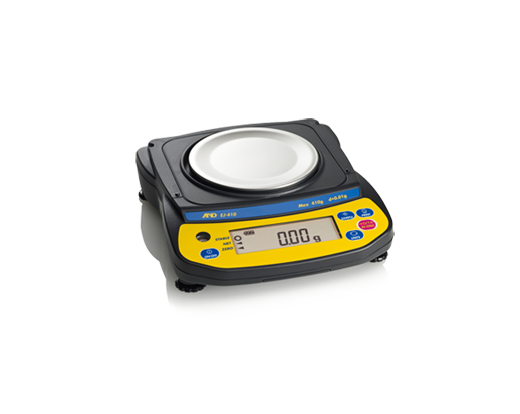

Balances, Compact, Newton EJ Series, A&D Weighing
The EJ Newton Series
A new model with 1mg resolution joins the EJ family of compact balances. Affordable and built-to-last, EJ Series balances are used in many applications including:
- Industrial
- Pharmacy
- Education
With thousands of balances in laboratories and production facilities around the world, the EJ Series has provided years of reliable weighing performance and are backed by A&D’s industry-leading 5 year warranty.
EJ-Series Product Features
- 13 models
- Backlit LCD display
- Counting and % functions
- AC power or alkaline battery operation (batteries not included)
- RS232C and USB output optional
- Number of samples: 5, 10, 25, 50 or 100 pieces
- Display updates 10 times per second
| Catalog No |
B140-50 |
B140-51 |
B140-52 |
B140-53 |
B140-54 |
B140-55 |
B140-56 |
B140-57 |
B140-58 |
B140-59 |
B140-60 |
| Model No |
EJ-123 |
EJ-120 |
EJ-200 |
EJ-300 |
EJ-410 |
EJ-610 |
EJ-1500 |
EJ-2000 |
EJ-3000 |
EJ-4100 |
EJ-6100 |
| Weight capacity |
120g |
120g |
210g |
310g |
410g |
610g |
1500g |
2100g |
3100g |
4100g |
6100g |
| Min. display "d" |
0.001g |
0.01g |
0.01g |
0.01g |
0.01g |
0.01g |
0.1g |
0.1g |
0.1g |
0.1g |
0.1g |
| Repeatability (Std. deviation) |
0.003g |
0.01g |
0.01g |
0.01g |
0.01g |
0.01g |
0.1g |
0.1g |
0.1g |
0.1g |
0.1g |
| Linearity |
±0.003g |
±0.01g |
±0.01g |
±0.02g |
±0.02g |
±0.02g |
±0.1g |
±0.1g |
±0.2g |
±0.2g |
±0.2g |
| Sensitivity drift |
±20 ppm/°C (10°C-30°C / 50°F-86°F) |
| Max. count |
12,000 pcs |
12,000 pcs |
21,000 pcs |
31,000 pcs |
41,000 pcs |
61,000 pcs |
15,000 pcs |
21,000 pcs |
31,000 pcs |
41,000 pcs |
61,000 pcs |
| Min. unit weight |
0.001g |
0.01g |
0.1g |
| Min. % display |
0.1% |
| Min. 100 % weight |
1g |
10g |
| Display |
7 segment LCD display with backlight (Character height 16mm) |
| Operating temperature |
-10°C-40°C / 14°F-104°F, less than 85% R.H. (non-condensing) |
| Power supply |
AC adapter or 4 x "AA" size dry-cell batteries |
| Battery operation |
Approximately 70 hours (backlight off, alkaline batteries) |
| Weighing pan size |
110mm Ø |
127mm x 140mm |
| Weight |
Approximately 850g |
Approximately 1100g |
| Calibration weight (factory setting) |
100g |
100g |
200g |
300g |
400g |
600g |
1500g |
2000g |
3000g |
4000g |
6000g |
