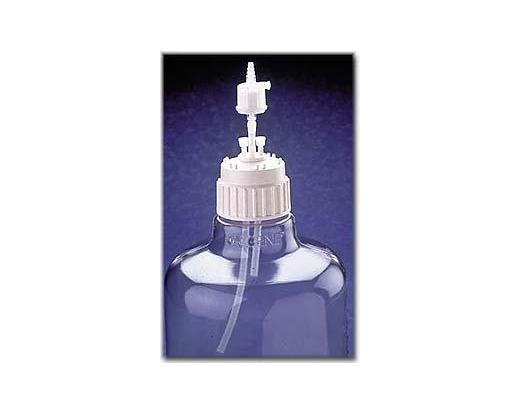

NALGENE® 223 Carboy Vent Filter, PTFE membrane, polypropylene housing
A compact filter for venting and solvent filtration applications. Useful for maintaining purified water stored in carboys. The disposable Carboy Vent Filter features a PTFE (polytetrafluoroethylene) membrane. The hydrophobic membrane permits sterile venting on a slow exhaust/liquid autoclave cycle of NALGENE® PP and PC carboys up to 50L. Can be used five times in venting applications. Non-sterile. Autoclavable.
| Typical Liquid Flow Rates |
160mL per meter per 0.1 bar |
| Typical Air Flow Rates |
8.5 Lpm per 0.1 bar at 0.7 bar |
| Liquid hold-up volume |
<5mL |
| Max operating pressure |
60 psig (4.1 bar) at ambient temperature |
| Max operating temperature |
60°C (at 30 psig) |
| Inlet and Outlet |
Stepped barbed hose fitting, 1/4 in to 1/2 in (6.4 to 12.5 mm) |
