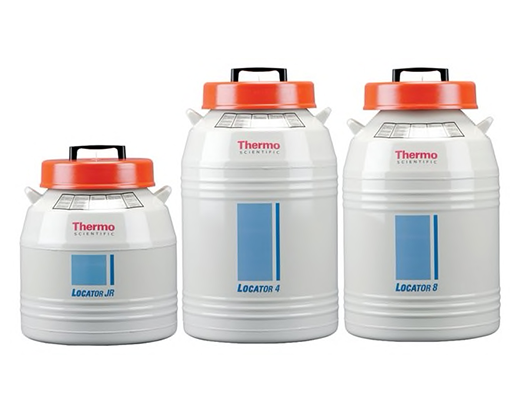

Locator® Rack and Box System, Barnstead Thermolyne
Product Description
Locator systems available in three sizes with capacities up to 3600 vials to meet your particular laboratory needs
Unique hanging rack and gridded box design allows for complete tracing and easy retrieval of individually stored samples
Suited for both manual and computerized inventory record-keeping methods
Advanced vacuum insulation minimizes liquid nitrogen evaporation and reduces operating costs.
Unbeatable temperature uniformity with advanced vacuum insulation, assures all samples are stored below –190°C. (Even when less than 2” (5cm) of liquid nitrogen remains in the vessel).
Backed by Thermolyne’s exclusive three-year warranty, Locator’s durable construction provides years of trouble-free service
Compact size easily fits into any lab
Secure locking hasp prevents unauthorized entry
An optional liquid nitrogen level monitor safeguards your valuable samples
Locator® Accessories

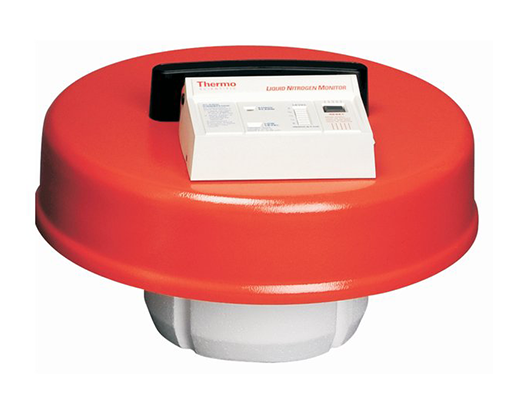

Level Monitor
Safeguard irreplaceable biological specimens with the most advanced liquid nitrogen level monitor available
Remotable alarm notifies you of low liquid nitrogen levels even at times when no one is in the building
LED level indicator panel continuously displays liquid nitrogen volume in 1/8 increments
Audible and visual alarms provide early warning of low level conditions. Indicator light flashes when approximately 2” (5cm) of liquid nitrogen remains in the vessel. An audible alarm sounds in unison with flashing low-level indicator light when level drops to about 1” (2.5cm).
Unlike traditional monitoring devices, this ultrasonic device eliminates contact with liquid nitrogen reducing liquid nitrogen evaporation.
Locator® Log
Designed for quick, reliable identification of your important samples
Three section format compliments the Locator and Locator Plus systems and your laboratory record keeping
Section 1: Serves as a helpful reminder for refilling vessels
Section 2: Locates your samples by your identification keys
Section 3: Inventories samples and their exact location
CryoClaw™
Designed to remove ampules and boxes that have fallen from racks and cans in cryogenic vessels having necks as small as two inches in diameter
Reach overhead items or retrieve fallen objects between benches and behind instruments
Safely move radio-isotopes without touching the container
| Catalog No |
R400-1 |
R400-2 |
R400-3 |
| Model Type |
Locator Jr |
Locator 4 |
Locator 8 |
| Height |
26 in |
36 in |
36 in |
| Diameter |
22 in |
22 in |
22 in |
| Neck Diameter |
8.5 in |
8.5 in |
6 in |
| Working Liquid Nitrogen Capacity |
40L |
90L |
90L |
| Static Liquid Nitrogen Consumption Rate |
0.65L/day |
0.65L/day |
0.40L/day |
| Weight Full |
166 lbs |
311 lbs |
311 lbs |
| Weight Empty |
76 lbs |
114 lbs |
114 lbs |
| Static Holding Time |
61 days |
138 days |
225 days |
| System Capacity |
1600 ampules |
3600 ampules |
1800 ampules |
| Racks Included with Vessel |
4 |
4 |
8 |
| Boxes per Rack |
4 |
9 |
9 |
| Box Capacity |
100 ampules |
100 ampules |
25 ampules |
| Box Dimensions |
5.25 x 5.25 in |
5.25 x 5.25 in |
3 x 3 in |
| Boxes Needed for System |
16 |
36 |
72 |
