Heratherm™ Advanced Protocol, Dual Convection, Security Microbiological Incubators, Thermo Scientific

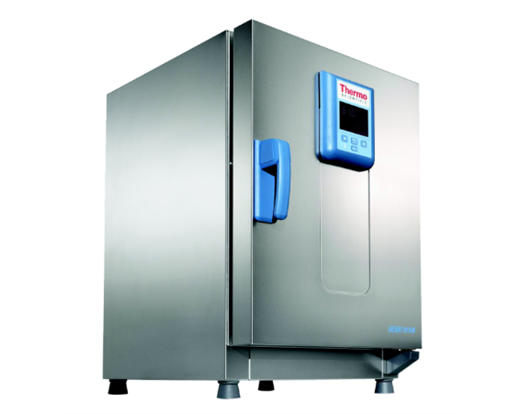

Ensure outstanding sample safety with Thermo Scientific™ Heratherm™ Advanced Protocol Security Microbiological Incubators, which include a unique 140°C decontamination routine, lockable incubator door with alarm for restricted access, and automatic over- and under-temperature alarms. Models are available with a stainless-steel exterior, offering an easy to clean, robust and corrosion-resistant surface that meets the demanding needs of pharmaceutical and clinical laboratories.
Features:
- Dual convection for application versatility (except for large capacity units)—fan speed adjustable from 0 to 100%
- Advanced digital timer for daily or weekly ON / OFF cycles
- Easy to clean, stainless-steel interior (AISI 304)

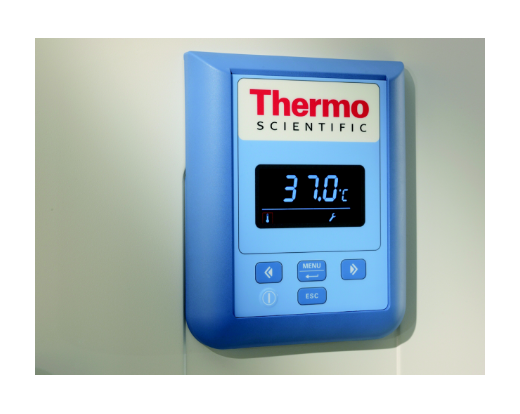

- Intuitive user interface for setting temperature
- Large, easy to read vacuum fluorescent display
- Optional sample sensor provides exact temperature of sample on display

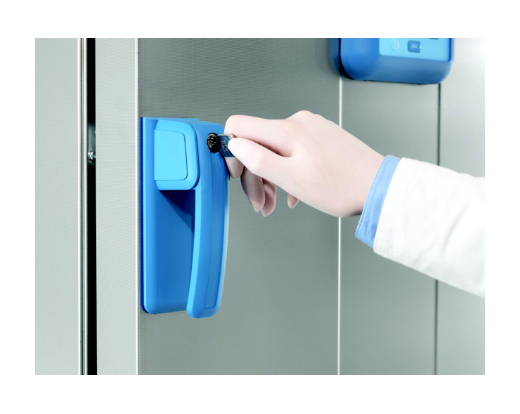

- Lockable door with alarm for restricted access (except for large-capacity units)
- Exceptionally small footprint
Temperature Stability:
- Broad temperature range from 5°C above ambient to 105°C—suitable for drying application
- Temperature uniformity of ±0.6°C (Fan off) and between ±0.2°C and 0.4°C (Fan full speed) (measured at 37°C)
- Temperature stability of ±0.1°C (measured at 37°C)†
- Automatic over- and under-temperature alarm

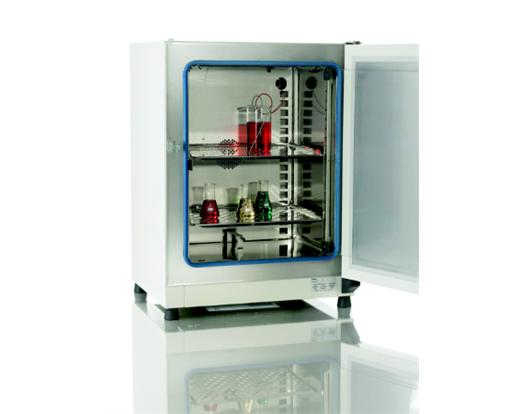

- Internal glass door allows sample viewing without impacting temperature
140°C decontamination cycle
- At 140°C contaminating microorganisms are reduced to a minimum —comparable to sterilization —within a six hour heating cycle
- No need for separate autoclaving of internal fittings
- Certified by an accredited microbiological institute
Ordering Information:
Availability may vary by country.
Note:
†Value assumes fan is off. With fan at full speed, uniformity is ±0.2°C (J207-18/21, J207-46/49), ±0.3°C (J207-19/22, J207-47/50), and ±0.4°C (J207-20/23, J207-48/51).
| Catalog No |
J207-18
J207-21 |
J207-19
J207-22 |
J207-20
J207-23 |
| Volume Chamber (Metric) |
2.12 cu. ft. (60L) |
3.5 cu. ft. (100L) |
6.4 cu. ft. (180L) |
| Voltage / Hertz |
120V / 60Hz |
| Height Exterior (Metric) |
28.3 inch (72cm) |
32.3 inch (82cm) |
36.2 inch (92cm) |
| Width Exterior (Metric) |
20.9 inch (53cm) |
25.2 inch (64cm) |
25.2 inch (64cm) |
| Length Exterior (Metric) |
22.2 inch (56.5cm) |
22.2 inch (56.5cm) |
29.1 inch (73.8cm) |
| Height Interior (Metric) |
20 inch (50.8cm) |
23.9 inch (60.8cm) |
27.9 inch (70.8cm) |
| Width Interior (Metric) |
13.9 inch (35.4cm) |
18.3 inch (46.4cm) |
18.3 inch (46.4cm) |
| Depth Interior (Metric) |
14.5 inch (36.8cm) |
14.5 inch (36.8cm) |
21.4 inch (54.3cm) |
| Wattage |
1390W |
| Weight (Metric) |
99 lb. (45kg) |
123 lb. (56kg) |
154 lb. (70kg) |
| Amperage |
120V: 11.6A |
| Control |
Microprocessor control with vacuum fluorescent display |
| Timer |
weekly / real time / hour |
| Temperature Uniformity (fan 0%/100%) |
±0.6°C/±0.2°C |
±0.6°C/±0.3°C |
±0.6°C/±0.4°C |
| Temperature Stability |
±0.1°C |
| Shelves |
2 supplied/ 13 max. |
2 supplied/ 16 max. |
2 supplied/ 19 max. |
| Plug Type |
120V: Nema 5-15 US |
| Exterior Finish |
Coated Steel or Stainless-steel (check Ordering Info below) |
| Temperature Range (Metric) |
ambient 5° to 105°C |
