Heracell™ 160i CO2 Incubators, Copper Chamber, Thermo Scientific
Achieve your next breakthrough. The Thermo Scientific™ Heracell™ VIOS CO2 incubator is specifically designed to deliver the performance reliability, ease of operation, and value required to support a range of culturing needs from basic research to the demanding, leading-edge applications, so you're ready for whatever comes next. Better solutions for optimal cell growth. Get added culturing flexibility with our CO2 incubators with variable oxygen control (tri-gas).
Direct heat chamber
- 165L (5.8 cu.ft.) 100% solid copper chamber with compact footprint, easily stackable
- Standard left hand door swing, field reversible by qualified service support
THRIVE active airflow
- In-chamber fan gently distributes clean, humidified air throughout the chamber ensuring homogeneous conditions
- Fast recovery of all parameters in 10 minutes or less for stable culturing conditions
- Auto-stop function disables fan operation during door openings to minimize air exchange
- ISO Class 5 HEPA filtration
- In-chamber HEPA continuously filters the entire chamber air volume every 60 seconds
- ISO Class 5 clean room air quality is achieved in the culture chamber within 5 minutes
- Continuous protection minimizes airborne contaminants settling on interior surfaces
Covered Integrated humidity reservoir
- Directly heated water reservoir provides stable high relative humidity levels, preventing culture desiccation
- Cover limits particles and spilled media from settling into the reservoir, keeping water clean
- Separating water provides a condensation free incubation chamber, limiting areas for contaminants to breed
- 5X faster humidity recovery than traditional water pan designs
- Easy water handling: humidity reservoir may be filled or drained without removing shelves or cultures
- Water level sensor indicates when a refill is needed
Steri-Run on-demand high temperature sterilization cycle
- Independently validated overnight cycle ensures complete elimination of all biological contaminants
- 180°C cycle designed for uniform 12-log sterilization on all chamber surfaces
- Simplifies cleaning and eliminates the need for separate autoclaving and reassembly of components
Intuitive, interactive iCAN touchscreen control
- Bright LED screen to monitor all incubator interactions
- Provides visibility to changes in culture environment with performance trend graphing, error and usage logs
- Convenient on-screen user prompts and reminders for easy navigation
- Selectable languages simplify operation: English, Spanish, German, French, Italian, Japanese and Mandarin
Wireless Monitoring Solution
Thermo Scientific DeviceLink HUB™, our easy-to-install solution, works with the Thermo Fisher Cloud to monitor conditions inside your CO
2 incubators.
- DeviceLink HUB monitors chamber temperature, gas levels, alarms, and alerts from the incubator data output connection, RS-232 or USB
- Alarms and notifications are also sent to the user by email and mobile push notification
- DeviceLink HUB is an optional accessory for models with the iCAN touchscreen interface
- DeviceLink HUB is available in the following regions- United States and Canada; 28 members of the European Union; Iceland, Liechtenstein, Norway, and Switzerland
In situ sensors and probes designed for precise control
- Dual temperature probes for over temperature protection with operational back up
- Thermal conductivity (TC) CO2 sensor with rH compensation designed for fast recovery and stable operation
- Direct heat chamber
- THRIVE active airflow
- ISO Class 5 HEPA filtration
- Covered Integrated humidity reservoir
- Steri-Run on-demand high temperature sterilization cycle
- Intuitive, interactive iCAN touchscreen control
- Wireless Monitoring Solution
- In situ sensors and probes designed for precise control
|
J207-79 |
J207-70 |
J207-80 |
J207-66 |
J207-72 |
J207-83 |
Description |
Single 165L |
Single 165L (NA) |
Single 165L |
Single Tri-Gas 165L |
Dual 165L |
Chamber Material |
100% solid copper |
CO2 Concentration Range |
1 to 20% |
CO2 Sensor Technology |
TC180 sensor |
Oxygen Control |
Opt.1-21% or 5-90% |
1-21% |
Humidity Delivery |
Covered integrated water reservoir |
Relative Humidity |
<93% at 37°C |
Temperature Range |
Ambient +3° to 55°C |
Data Outputs |
USB, and optional 4-20mA |
Certifications/Compliance |
CE, CSA |
Int. Dimensions (DxWxH) |
22.7 x 18.5 x 23.9 inch (57.6 x 47 x 60.7cm) |
Ext. Dimensions (LxWxH) |
34.6 x 25.1 x 35.4 inch (88 x 63.7 x 90cm) |
Capacity |
5.8 cu. ft. (165L) |
Electrical Requirements |
120V / 50/60Hz |
Net Weight |
183 lb (83kg) |
Ordering Info
Cat No |
Vendor Part No |
Description | Capacity | Power |
Qty |
Price |
Qty |
UOM |
J207-79 |
51033546 |

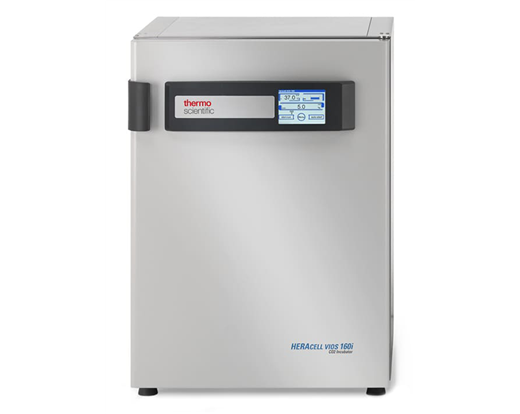

VIOS 160i CO2 Incubator, Single chamber | 165L (5.8 cu.ft.) | 120V / 50/60Hz |
In Stock |
1 |
$12,600.00 |
|
EA |
J207-70 |
51030401 |
VIOS 160i CO2 Incubator, Single chamber (North America only) | 165L (5.8 cu.ft.) | 120V / 50/60Hz |
In Stock |
1 |
$13,544.23 |
|
EA |
J207-80 |
51033722 |
VIOS 160i CO2 Incubator, Single chamber | 165L (5.8 cu.ft.) | 120V / 50/60H |
In Stock |
1 |
$16,500.00 |
|
EA |
J207-66 |
51030408 |

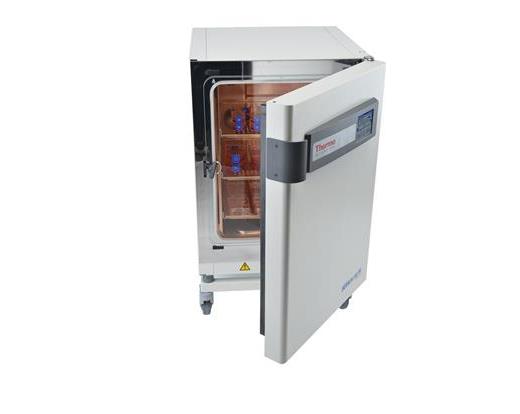

VIOS 160i Tri-Gas CO2 Incubator, Single chamber | 165L (5.8 cu.ft.) | 120V / 50/60Hz |
In Stock |
1 |
$16,400.00 |
|
EA |
j207-72 |
51030410 |
VIOS 160i Tri-Gas CO2 Incubator, Single chamber, HEPA | 165L (5.8 cu.ft.) | 120V / 50/60Hz |
In Stock |
1 |
$18,000.00 |
|
EA |
J207-83 |
50162972 |

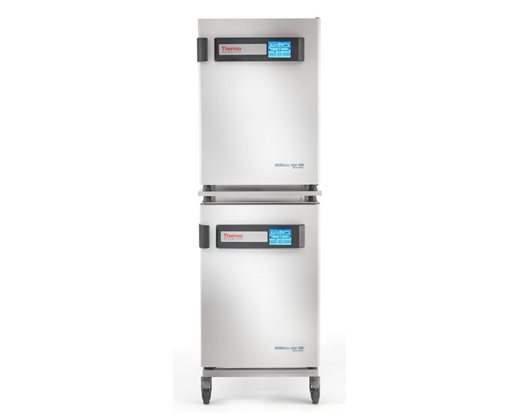

VIOS 160i CO2 Incubator, Dual chamber, 2 x with stacking adapter, rollerbase | 165L (5.8 cu.ft.) | 120V / 50/60Hz |
In Stock |
1 |
$28,400.00 |
|
EA |
J207-83PROMO |
50162972PRO |
Heracell VIOS 160i CO2 incubator dual chamber with two 100% solid copper chambers with HEPA filtration including stacking adapter and support stand with casters, Steri-Run sterilization cycle and automated door lock, IR180Si CO2 sensor | 165L (5.8 cu.ft.) | 120V / 50/60Hz |
In Stock |
1 |
$19,880.00 |
|
EA |
