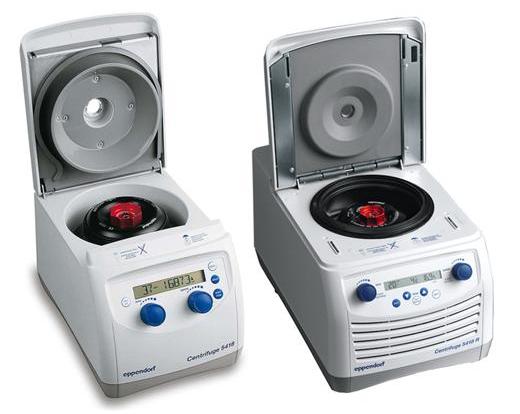

Eppendorf® Microcentrifuge Model 5418 and 5418R
Centrifuges 5418 and 5418R with their 18-place capacity rotors are specifically designed for low to medium capacity in 1.5/2 ml tubes and Microtainers®. Their speed of up to 16,873 x g allows for standard molecular biology and clinical applications.
Like all Eppendorf centrifuges, Models 5418 and 5418R offer more than just speed and capacity: operating concepts and overall designs are based on in-depth ergonomic studies, making everyday routines faster and easier. Even though the unique OptiBowl design allows whisper quiet operation without a rotor lid, Models 5418 and 5418R come standard with a certified aerosol-tight QuickLock™ rotor to ensure maximum safety when working with hazardous samples. Refrigerated version 5418R offers several unique features that save you energy and ensure high temperature accuracy for maximum sample protection.
- Capacity: 18 x 1.5/2.0 ml
- Speed up to 16,873 x g (14,000 rpm)
- Compact footprint to fit on crowded lab benches
- OptiBowl design allows for whisper quiet operation without rotor lid to reduce handling time and benefit your work environment
- Soft-touch one-finger closure centrifuge lid for ergonomic operation
- Lid opens automatically at the end of the run to prevent sample warming and to allow easy access to samples (5418 only)
- QuickLock rotor lid closure for fast and reliable lid locking
- Rotor comes standard with an aerosol-tight lid for safe use with hazardous materials
- Large digital display and rpm/rcf conversion key for accurate and reproducible parameter settings
- Rotary knob control panel for fast parameter selection
- 2 year warranty
Refrigerated Model 5418R also features:
- Temperature range from 0°C to 40°C
- Patented compressor technology minimizes vibration and improves temperature accuracy
- Maintains constant 4°C at maximum speed
- FastTemp function for fast pre-cooling and maximum temperature accuracy inside the rotor
- ECO shut-off engages after 8 hours of nonuse to reduce energy consumption and extends compressor life (can be deactivated). Saves you up to 47% energy overnight.
- Built-in condensation drain to eliminate water accumulation and prevent corrosion
| Description |
Centrifuge 5418 |
Centrifuge 5418R |
| Max. rotor capacity |
18 x 1.5 ml/2 ml |
| Maximum RCF |
16,873 x g |
| Maximum RPM |
14,000 rpm |
| No. of rotors |
1 |
| 18-place rotor for 1.5/2 ml tubes |
16,873 x gAQ |
| Acceleration time (seconds)1 |
16 |
13 |
| Braking time (seconds)1 |
18 |
12 |
| Time setting |
30 s–99 h 59 min, infinite |
| SHORT spin for quick runs |
Yes |
| Full-digit display of time and speed |
Yes |
| Additional product features |
| Soft-touch one-finger lid closure |
Yes |
| Noise level dB(A) |
51 |
57 |
| OptiBowl—Whisper quiet operation without rotor lid |
Yes |
| Control panel types |
knob |
| Metal rotor bowl for easy cleaning |
— |
Yes |
| Features of refrigerated models |
| Temperature range |
— |
0°C to 40°C |
| Maintains constant 4°C at max speed |
— |
Yes |
| FastTemp pre-cooling to 4°C1 |
— |
15 min |
| Standby cooling |
— |
Yes |
| ECO shut-off |
— |
Yes |
| Condensation drain |
— |
Yes |
| Dimensions |
| Height |
21 cm/8.2 in |
25 cm/9.8 in |
| Footprint (W x D) |
21 x 30 cm /
8.2 x 11.8 in |
29.8 x 46.3 cm/
11.7 x 18.2 in |
| Weight without rotor |
7.7 kg/17 lb |
22 kg/45.5 lb |
A Certified aerosol-tight
Q QuickLock™ rotor lid
C PTFE-coated for increased chemical resistance and easy cleaning (optional for Model 5424)
1 According to DIN 58970 with standard 1.5/2 ml rotor and room temperature of 21°C
