Centrifuges, Multipurpose, High Capacity, Models 5810 and 5810R, Eppendorf®

home > centrifuge > centrifuges > centrifuges, multipurpose, high capacity, models 5810 and 5810r, eppendorf®

Email Print Recently Viewed

You have not viewed any products recently.

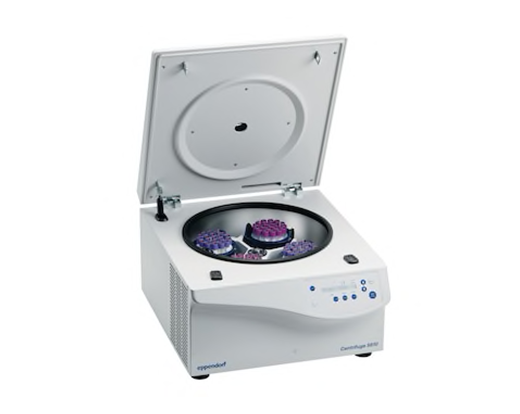

Eppendorf High Capacity Multipurpose Centrifuges, Models 5810 and 5810R

View Larger

Centrifuges, Multipurpose, High Capacity, Models 5810 and 5810R, Eppendorf®

Eppendorf centrifuges 5810 and 5810R with their renowned quality and reliability offer you the most cost efficient solutions for your medium to high-throughput applications—now and in the future. Whether your applications require spinning many tubes at a time or centrifugation of larger volume vessels at high-speed, these multipurpose centrifuges with their variety of rotors and adapters cover virtually any application in tubes, bottles, flasks and microplates. They are literally three centrifuges in one: a high-capacity centrifuge for cell culture and clinical applications; a high-speed centrifuge for separating cell lysates; and a microcentrifuge for nucleic acid purification.

Designed to fit in every lab

Compact footprint saves valuable bench space
Low lid opening height and opening angle for use under shelves
Short depth and low weight for a multipurpose centrifuge allows placement on standard laboratory benches

New Eppendorf QuickLock® caps for one-hand operation

Significantly improved handling, easy operation with one or two hands
Handle allows the closed bucket to be carried to the biosafety cabinet where it can be opened in a safe environment
Aerosol-tightness has been tested and verified by HPA, Porton Down, UK

Aerosol-tight 6 x 50mL conical tube Rotor FA-45-6-30

Rotor for high-speed centrifugation of tubes up to 50mL
Aerosol-tight2 rotor rid for safe centrifugation of hazardous samples
Maximum speed: 16,639 x g (11,000 rpm) or 20,130 x g (12,100 rpm) when used in Model 5810R
Rotor features a unique QuickLock closure for fast and reliable lid locking
Eppendorf's advanced rotor design minimizes weight for easy lifting and carrying (weight includes lid- 3.17 kg)
45° borehole angle for compact pellets at the bottom of the tube—minimizes pellets smear along the tube wall
Adapters for 15mL conical and other tubes available

Features
Specifications
Resources

High centrifugation speed up to 20,800 x g (14,000 rpm) for molecular applications in tubes from 0.2 to 750mL
Outstanding versatility for all your applications: Broad rotor and adapter selection to spin all commonly used tubes, bottles, flasks and plates
Aerosol-tight rotors and covers for all centrifuge applications involving hazardous materials (pathogenic bacteria, viruses, blood samples or radioactive material)
The benchmark for ergonomic operation: Low sound level to benefit your work environment
Low profile design for ergonomic loading/unloading of rotor
Advanced rotor design minimizes fixed-angle rotor weight for easy lifting and carrying
Automatic rotor recognition and imbalance detection for maximum operational safety
Centrifuge performance you can count on: Outstanding software control guarantees high accuracy of time (±2 s in 5 min), speed (1% ) and temperature (±2°C at 6°C ) for maximum run reproducibility
Temperature range from –9°C to 40°C , with FastTemp function for rapid cooling of the centrifuge chamber
Standby cooling maintains temperature when not in use
Centrifuge lid with soft-touch lid closure and low opening height for stress-free lid locking
Optional "At Set RPM" mode starts timer when set speed is reached for maximum run-to-run reproducibility independent of rotor load or acceleration speed setting
Possibility for adapter-specific rotor radius adjustment to guarantee maximum RCF accuracy
Designed to fit in every lab: Compact footprint saves valuable bench space
Low lid opening height and opening angle for use under shelves
Short depth and low weight for a multipurpose centrifuge allows placement on standard laboratory benches
120 V power supply for use on standard outlets provides maximum placement flexibility
Compliant to international safety standards—no need to bolt the unit to the table
2-year warranty

	Centrifuge 5810	Centrifuge 5810R
Max g-force	20,800 rcf	20,800 rcf
Speed range	200-14,000 rpm	200-14,000 rpm
Capacity	4 x 750mL (SB), 6 x 100mL (F), 4 x DWP	4 x 750mL (SB), 6 x 100mL (F), 4 x DWP
Number of rotors	18	18
Capacity for 1.5mL tubes	248	248
Capacity for 50mL conical tubes	28	28
Capacity for PCR plates	16	16
Refrigeration	No	Yes
Temperature control range	N/A	-9°C to 40°C
Power supply	120V, 50/60 Hz	120V, 50/60 Hz
Required current	Standard 15 Amp	Standard 15 Amp
Power consumption	max. 950W	max. 1300W
Acceleration time to max speed	Depends on rotor and ramp speed	Depends on rotor and ramp speed
Braking time from max speed	Depends on rotor and ramp speed	Depends on rotor and ramp speed
Timer	1 to 99 min, with cont. mode	1 to 99 min, with cont. mode
Noise level	<53 dB(A)	<59 dB(A)
Dimensions (W x D x H)	21 x 21 x 13 inch / 54 x 54 x 35 cm	28 x 21 x 13 inch / 70 x 54 x 35 cm
Height with lid open	31 inch / 80 cm	31 inch / 80 cm
Weight	150 lb / 68 kg	218 lb / 99 kg

Ordering Info

Cat No	Vendor Part No	Model	Description	Qty	Price	Qty
C166-5	022625004	5810	Eppendorf Centrifuge Model 5810, 115V	In Stock	1	$8,642.00	EA
C166-6	022625055	5810	Eppendorf Centrifuge Model 5810, 220V	In Stock	1	$8,642.00	EA
C166-183	022628185	5810	Centrifuge 5810, keypad, non-refrigerated, with Rotor S-4-104, includes adapters for 15/50mL conical tubes, 120V, 50/60Hz (US), 15A	In Stock	1	$13,264.00	EA
C166-192	022628056	5810	Centrifuge 5810, keypad, non-refrigerated, with Rotor A-4-62, includes adapters for 13/16mL round tubes, 120V, 50/60Hz (US), 15A	In Stock	1	$11,357.00	EA
C166-185	022628157	5810	Centrifuge 5810, keypad, non-refrigerated, with Rotor A-4-62, includes adapters for 15/50mL conical tubes, 120V, 50/60Hz (US), 15A	In Stock	1	$11,357.00	EA
C166-187	022628179	5810	Centrifuge 5810, keypad, non-refrigerated, with Rotor A-4-81, includes adapters for 15/50mL conical tubes, 120V, 50/60Hz (US), 15A	In Stock	1	$12,381.00	EA
C166-7	022625501	5810R	Eppendorf Refrigerated Centrifuge Model 5810R, 115V	In Stock	1	$13,329.00	EA
C166-8	022625551	5810R	Eppendorf Refrigerated Centrifuge Model 5810R, 220V	In Stock	1	$13,329.00	EA
C166-131	022628257	5810R	Centrifuge 5810R, with 6 x 50mL High-Speed Pack, 120V, 50/60Hz, includes 6 x 50mL conical fixed-angle rotor FA-45-6-30 plus 7 adapters for 15mL conical tubes (1 x 5820718005)	In Stock	1	$16,487.00	EA
C166-156	022628180	5810R	Centrifuge 5810R, with 48 x 15mL or 20 x 50mL conical tubes, includes rotor A-4-81 with rectangular buckets and adapters (2 x C166-46 & 2 x C166-47)	In Stock	1	$16,487.00	EA
C166-163	022628067	5810R	Centrifuge 5810R, refrigerated, with Rotor A-4-62, includes adapters for 13/16mm round-bottom tubes, keypad, 120V, 50/60Hz	In Stock	1	$15,413.00	EA
C166-167	022627023	5810R	Centrifuge 5810R, refrigerated, with Rotor A-4-62 (C166-38), keypad, 120V, 50/60Hz	In Stock	1	$15,034.00	EA
C166-169	022628187	5810R	Centrifuge 5810R, refrigerated, with Rotor S-4-104 (C166-115), includes adapters for 15/50mL conical tubes, keypad, 120V, 50/60Hz	In Stock	1	$17,055.00	EA
C166-181	022627122	5810R	Centrifuge 5810R, refrigerated, with Rotor S-4-104 (C166-115), keypad, 120V, 50/60Hz	In Stock	1	$16,676.00	EA
C166-184	022628168	5810R	Centrifuge 5810R, keypad, refrigerated, with Rotor A-4-62, includes adapters for 15/50mL conical tubes, 120V, 50/60Hz (US), 15A	In Stock	1	$15,413.00	EA
C166-189	022628188	5810R	Centrifuge 5810R, keypad, refrigerated, with Rotor S-4-104, includes adapters for 15/50mL conical tubes, 120V, 50/60Hz (US), 20A	In Stock	1	$17,055.00	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
C166-112	5820710004	Aerosol-tight swing bucket rotor (A-2-DWP-AT) with buckets, aerosol-tight lids, and plate carrier, for plates up to 60mm (89mm without AT lids) in height. Max speed 3,486 x g (4,500 rpm)	In Stock	1	$3,872.14	EA
C166-43	022638602	Swing bucket rotor (A-4-81) with 4 x 500mL rectangular buckets, for volumes up to 500mL and deepwell plates. Max speed 3,250 x g (4,000 rpm)	In Stock	1	$4,440.00	EA
C166-128	022638704	Adapter, for 20 reaction vessels 1.5/2.0mL, for 500mL rectangular bucket in Rotor A-4-81 (C166-43) and Rotor S-4x500	In Stock	2	$418.93	PK
C166-46	022638742	Adapter, 15mL conical, rectangular bucket, for rotor A-4-81 (C166-43), 2 each	In Stock	1	$418.93	EA
C166-47	022638769	Adapter, 50mL conical, rectangular bucket, for rotor A-4-81 (C166-43), 2 each	In Stock	1	$418.93	EA
C166-68	022638726	Adapter, 7-17mL, rectangular bucket, for rotor A-4-81 (C166-43), 2 each	In Stock	1	$418.93	EA
C166-165	022638921	Adapter, for rotor A-4-81 (C166-43), 1 bottle 180-250mL flat/ 175-225mL conical/ 500mL rectangular bucket	In Stock	2	$418.93	PK
C166-45	022638700	Adapter, 25 round-bottom tubes 2.6-5mL, 500mL rectangular bucket in Rotor A-4-81 (C166-43) and Rotor S-4x500, set of 2 pieces	In Stock	1	$418.93	EA
C166-44	022638661	Cap for 500mL rectangular buckets, aerosol-tight, aerosol-tight, for Rotor A-4-81 (C166-43), set of 2 pcs.	In Stock	1	$362.14	EA
C166-42	022638807	Rotor A-4-81, with 4 MTP/Flex buckets	In Stock	1	$5,291.79	EA
C166-129	022638866	MTP/Flex bucket, for Rotor A-4-81 (C166-42) and Rotor S-4x500	In Stock	2	$1,395.00	PK
C166-48	022638840	MTP/Flex bucket, for Rotor A-4-81 (C166-42), set of 4 buckets	In Stock	1	$2,787.86	EA
C166-115	5820740000	Swing Bucket Rotor with 4 x 750mL round buckets for volumes up to 750mL, deepwell and microtiter plates, Max speed 3,214 x g (3,900 rpm)	In Stock	1	$5,033.57	EA
C166-170	5825738004	Adapter, 23 round-bottom tubes 2.6-8mL, for Rotor S-4-104 (C166-115), Rotor S-4x1000 round buckets and Rotor S-4x750	In Stock	2	$418.93	PK
C166-171	5825736001	Adapter, 20 round-bottom tubes 5.5-12mL, for Rotor S-4-104 (C166-115), Rotor S-4x1000 round buckets and Rotor S-4x750	In Stock	2	$418.93	PK
C166-135	5820708000	Wide-neck bottle, 750mL in Rotor C166-115	In Stock	2	$394.29	PK
C166-116	5804746007	Swing Bucket Rotor for volumes up to 250mL. Max speed 3,234 x g (4,200 rpm)	In Stock	1	$3,182.14	EA
C166-117	5820772000	Fixed Angle Rotor with 48 sleeves, 40 inserts and 40 mats for 40 x 15mL tubes. Max speed 5,050 x g (5,500 rpm)	In Stock	1	$2,101.07	EA
C166-118	5820760001	Fixed Angle Rotor for 48 x 1.5/2mL tubes, with Aerosol-tight QuickLock Lid, Max speed 19,803 x g (13,000 rpm)	In Stock	1	$2,437.50	EA

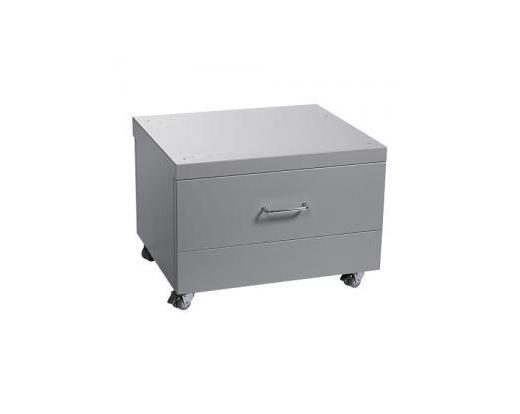

C166-155	5821020010	Rolling Cabinet for Centrifuge models 5804/5804R, 5810/5810R, with 4 casters (2 lockable) and drawer	In Stock	1	$2,706.00	EA
C166-180	5825719000	Adapter, 1 cell culture flask, for Rotors A-4-81-MTP/Flex	In Stock	2	$258.21	PK
C167-103	5825723007	Adapter for 80-120mL round-bottom tubes, for rotor A-4-81/S-4 x 500, Centrifuge 5810R, set of 2	In Stock	2	$423.21	EA
C166-191	5820722002	Adapter for 1 tube 35mL, for Rotor FA-45-6-30 and FA-6x50	In Stock	2	$231.43	PK
