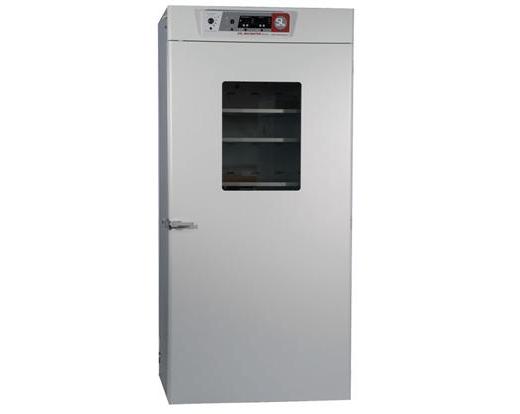

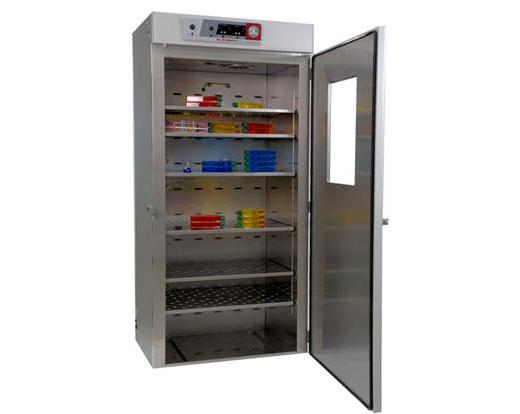

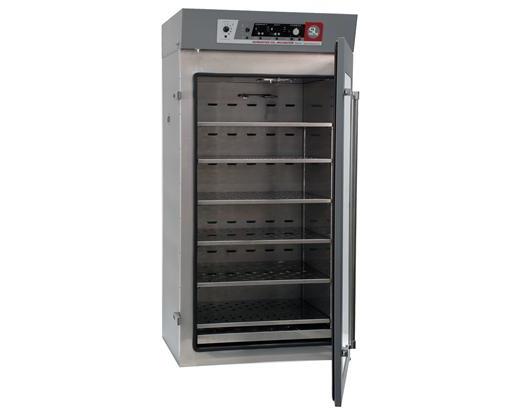

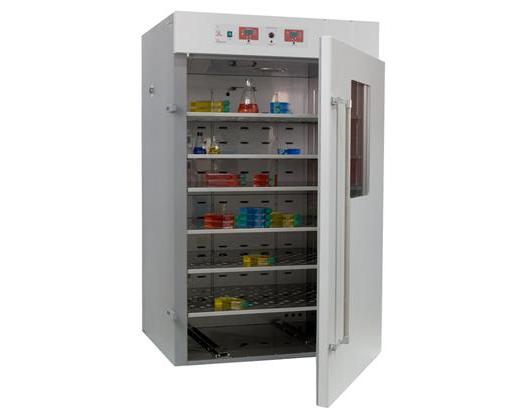

CO2 Incubators, Large Capacity, Infrared CO2 Sensor
These units are well-suited for roller bottle apparatus and high-volume tissue culture applications and is ideal for cell harvesting. These Large Capacity CO2 Incubators come with a 2 Year Limited Warranty.
These large capacity incubators maximize laboratory space in a convenient floor model design. Their chamber floor is specifically designed for easy movement of roller bottle apparatus by use of a flip-out ramp. Supplied with four one amp interior electrical outlets and gentle mechanical air convection that ensures excellent temperature uniformity, and eliminates cold spots. An infrared system accurately controls CO2 levels, provides fast CO2 recovery after door openings, and is not affected by temperature or humidity. These units are supplied with six stainless steel shelves, which are adjustable on 1/2 inch increments.
Reach-in CO2 incubator features include:
- Microprocessor Temperature Control
- Infrared CO2 Control
- Accommodates Roller Bottle Apparatus
- All Stainless Steel Interior
- Positive Door Latch
- Double-Wall Insulation
- Powder-Coated Exterior
Performance:
- Horizontal airflow system promotes ideal growth environment
- IR CO2 control
- Programmable temperature, over-temperature, CO2, humidity
- Audible/visual alarm and alarm silence
- Remote alarm contacts
- Data outputs to help meet internal and regulatory documentation requirements.
Construction:
- Heated triple-pane glass door minimizes condensation and permits a clear view
- One thru-wall access ports for probes, sensors, power cords
- Copper drain for contamination control
- Stainless-steel interior
- Heavy-duty, solid stainless-steel shelves resist corrosion; adjust on 0.5 inch centers
Standard Design Features: J110-5/5E, J110-6/6E, J110-7/7E
- Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and is not affected by temperature or humidity levels
- Unique air jacket design provides excellent temperature uniformity of /-0.5°C at 37°C
- Ideal for roller bottle apparatus, includes a flip-out ramp
- Corrosion resistant, easily cleanable stainless steel chamber
- Viewing window in door
- Four one amp interior electrical outlets
Recommended for: Culturing large volumes of patient samples for bacterial growth, performing short-term growth studies, working with large volume products.
Please note that this unit needs to be plumbed with sterilized-distilled, demineralized, or de-ionized water. Water purity must be in the range of 50K-1M Ohm/cm or conductivity range of 20.0-1.0 uS/cm. If your laboratory cannot support these water purity levels, purchase the SHEL LAB Water Purification Kit. See the operations manual for more information.
| |
J110-4/4E |
J110-5/5E |
J110-6/6E |
J110-7/7E |
| Shipping Weight / Net Weight |
341 / 480 lbs |
610 / 660 lbs |
710 / 850 lbs |
710 / 850 lbs |
| Interior Outlet |
Access Port |
4 |
| Overtemperature Alarm |
Yes |
| Shelving |
6 Supplied (30 Maximum) |
| Relative Humidity Range |
up to 95% |
| Jacket Type |
Forced Air |
Air |
| CO2 Recovery Rate |
<5 minutes |
| CO2 Sensor |
Infrared (IR) /-0.1% |
| CO2 Range |
0-20% |
| Temperature Control |
±0.1°C |
| Temperature Uniformity |
±0.5°C at 37°C |
| Temperature Range |
Ambient 5°C to 50°C |
Ambient 8°C to 60°C |
| Exterior Dimensions WxDxH inch (WxDxHcm) |
39.3 x 37.0 x 78.5
(99.7 x 94.0 x 199.4) |
39.5 x 33.8 x 75.3
(100.4 x 85.8 x 191.2) |
42.5 x 34.5 x 90
(108 x 87.7 x 228.6) |
51 x 44.8 x 81.5
(129.6 x 113.7 x 207) |
| Interior Dimensions WxDxH inch(WxDxHcm) |
30.7 x 26.0 x 56.5
(78.1 x 66.0 x 143.5) |
32.7 x 26 x 63
(83.1 x 66 x 160) |
35 x 26 x 75.5
(88.9 x 66 x 191.7) |
43 x 34.5 x 67.5
(109.2 x 87.6 x 171.4) |
| Capacity |
26.1 Cu.Ft. (740L) |
31.0 Cu.Ft. (879L) |
40 Cu.Ft. (1125L) |
58 Cu.Ft. (1641L) |
| Maximum Energy Consumption |
115V / 230V |
115V,1668W / 230V,1840W |
115V,1725W / 230V,2070W |
115V,1725W / 230V,1840W |
Ordering Info
| Cat No |
Capacity | Description | Power |
Qty |
Price |
Qty |
UOM |
| J110-4 |
26.1 Cu.ft. (740L) | Humidified CO2 Incubator | 115V |
In Stock |
1 |
Inquire |
|
EA |
| J110-4E |
26.1 Cu.ft. (740L) | Humidified CO2 Incubator | 230V |
In Stock |
1 |
Inquire |
|
EA |
| J110-5 |
31.0 Cu.ft. (879L) | CO2 Air Jacketed Incubator | 115V, 1668W |
In Stock |
1 |
$18,007.00 |
|
EA |
| J110-5E |
31.0 Cu.ft. (879L) | CO2 Air Jacketed Incubator | 230V, 1840W |
In Stock |
1 |
$19,736.00 |
|
EA |
| J110-6 |
40.0 Cu.ft. (1125L) | CO2 Air Jacketed Incubator | 115V, 1725W |
In Stock |
1 |
$21,419.00 |
|
EA |
| J110-6E |
40.0 Cu.ft. (1125L) | CO2 Air Jacketed Incubator | 230V, 2070W |
In Stock |
1 |
$23,488.00 |
|
EA |
| J110-7 |
58.0 Cu.ft. (1641L) | CO2 Air Jacketed Incubator | 115V, 1725W |
In Stock |
1 |
$25,661.00 |
|
EA |
| J110-7E |
58.0 Cu.ft. (1641L) | CO2 Air Jacketed Incubator | 230V, 1840W |
In Stock |
1 |
$28,148.00 |
|
EA |
