Classic Still Accessories, Floor Stands for Cylindrical Storage Tanks, Wall Bracket for Cylindrical Storage Tanks and Ultraviolet Lamp Assembly, Barnstead

• Mount storage tanks on a wall or place them on a stand
• Maintain sterility of stored water with a UV Lamp

• Floor stands for 10-50 gallon storage tanks are fabricated from heavy gauge sheet metal and are provided with adjustable feet.
• Floor stands for 100-200 gallon storage tanks are fabricated of thick steel angle-iron.

• Wall brackets for 10 gallon tanks are fabricated from heavy gauge aluminum.
• Wall brackets for 25 gallon tanks are fabricated of thick steel angle-iron.

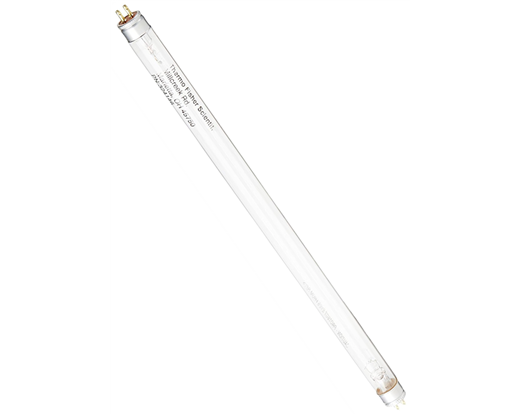

• The ultraviolet lamp is designed to be installed on a storage tank to maintain the sterility of the distilled water in storage.
• The ultraviolet assembly consists of a cylindrical electrical housing which includes a starter, ON/OFF switch, 6 foot electrical cord, lamp and ballast.
• The housing is designed to be mounted on top of a storage tank with the lamp extended vertically into the tank.
• The lamp is enclosed by a tubular, transparent, inert sheath. The sheath is sealed at the neck by a grommet installed on top of the storage tank. When it is necessary to change the lamp, only the lamp need be removed. The reservoir cover and sheath remain in place at all times so distilled water is never exposed to possible contamination from the air.
• The ultraviolet lamp operates from 120VAC, 50/60Hz, 35 Watt electrical power.
• Each ultraviolet lamp assembly is furnished with one bulb which should be replaced every 90 days if operated continuously. Rectangular tanks are always provided with Ultraviolet Assembly.
