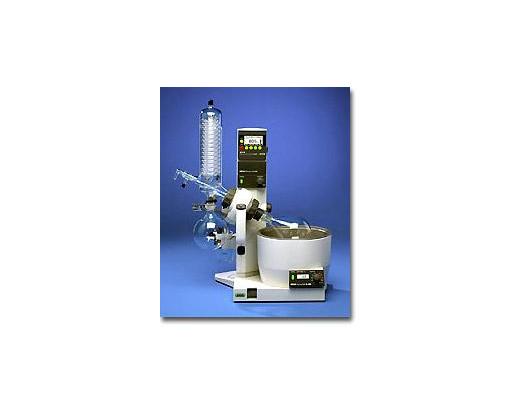

Buchi SafetyVAP® Rotary Evaporation Systems, Models R-200 Advanced

  • For 50mL to 3000mL flasks
  • 6 glass assemblies
  • Heating Bath +20 to 180°C
  • Vacuum Controller V-800 included

    The Safety Vap Model R-200 includes an integrated Vacuum Controller V-800. The regulation and display of pressure ratios assure optimal distillation. Rotation speed and the quick-action jack can also be operated using the optional Remote Control.






































    Proven AdvantagesExclusive Advantages
    System components from the same manufacturer-SafetyVap, vacuum sources, Vacuum Controller and Recirculating ChillerWith a footprint of only 0.14m2, the new Buchi SafetyVap needs 33% less space than the previous SafetyVap line.
    Practical combi-clip for easy removal of evaporation flaskThe quick-action jack is activated by the press of a button. In case of power failure, the jack can be lifted manually
    The under-pan heating element facilitates easy cleaning of the heating panThe sealing system is made of PTFE/glass and resistant to chemicals. It is significantly longer-lasting, thereby reducing running-costs and maintenance time
    PLASTIC+GLAS reduces glass breakage and protects the userAn optimized condenser with a steeper elevation angle for small volume flasks. The centralized connections prevent tangled hoses
    Modular construction and the six standard glass assemblies provide convenience and flexibilityThe heating bath has a corrosion-resistant PTFE coating. The wider temperature range, from +20 to +180°C, makes the SafetyVap more suitable for high-boiling solvents. The bath also has a digital temperature display.
    All glass components are made of high-quality borosilicate 3.3The new Buchi Vacuum Controller is designed to integrate optimally with the SafetyVap, and it is available in two models to meet individual needs.
    The insulated heating bath protects against burns and lowers energy consumptionThe new SafetyVap, complete with insulated heating bath, offers maximum safety. Additional safety options include PLASTIC+GLAS coated glass components and a protective shield.
    The new long-lasting seals reduce running-costs and maintenance timeTotal Flexibility! The modular construction of the two basic models and two Vacuum Controllers make up to six possible configurations to suit your exact needs. Six glass assemblies are available for various applications. Remote control via cable is also an option.
    •

    Technical Data for Model R-200 Advanced
    Operating Voltage 100V, 120V, 230V
    Frequency 50/60 Hz
    Power Consumption 120 W
    Rotation Speed 20-280 rpm
    Weight 16-18 kg
    Dimensions (cm) 544 x 697 x 367 (LxHxD)
    Approvals UL, CSA, CE
    Technical Data, Heating Bath Model B-490
    Power 120V, 230V - 50/60Hz - 1400W
    Regulation Range 20-180°C
    Regulation Precision +/- 1
    Bath Size 4L
    Flask Sizes 50-3000mL
    Temperature Display 20-18°C
    Weight 3.3 kg
    Dimensions (cm) 280 x 191 x 250 (LxHxD)
    Approvals UL, CSA, CE
    Six condenser assemblies allow you to customize glasssware to match your needs. All glassware can be interchanged among all SafetyVAPTM models for:
  • Simple solvent distillation
  • Low-boiling-point solvent stripping
  • Hard-to-handle materials that bump and foam
    Condenser Assembly A
    Description: Diagonally positioned tap-water-cooled condenser
    Applications: Simple solvent distillations
    Feature: Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask
    Condenser Assembly S
    Description: Vertical tap-water-cooled condenser with Teflon® reflux valve
    Application: Distillation of high-boiling-point solvents and reflux reactions
    Features: Continuous feed can be used simultaneously with optional vapor temperature sensor. Can be used with optional Soxhlet extractor for solid/liquid extractions.
    Condenser Assembly V
    Description: Vertical tap-water-cooled condenser
    Application: Distillation of high-boiling point solvents (>100°C)
    Features: Continuous feed of volumes exceeding capacity of evaporating flask. Continuous feed can be used simultaneously with optional vapor temperature sensor.
    Condenser Assembly E
    Description: Descending condenser assembly with expansion vessel
    Application: Ideal for materials that bump and foam. Expansion vessel prevents carryover to receiving flask. Not recommended for high-boiling solvents.
    Feature: Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask.
    Condenser Assembly C with continuous feed
    Description: Two-piece cold-trap condenser using mechanical refrigeration or dry ice and acetone as a coolant.
    Application: Distillation of low-boiling solvents.
    Feature: Colder condensing surface. Continuous feed of volumes exceeding capacity of evaporating flask.
    Condenser Assembly CR
    Description: Two-piece cold-trap condenser with Teflon® reflux valve. Uses mechanical refrigeration or dry ice and acetone as a coolant.
    Application: Distillation of low-boiling solvents and reflux reactions
    Features: Colder condensing surface. Inlet feed tube permits continuous feed of volumes exceeding capacity of the evaporating flask.

    • Ordering Info

    Cat No Vendor Part No STJDescription Qty Price Qty UOM
    E278-60 015102004 24/40SafetyVAP Model R-200A, Advanced, with Servo-Jack and Bath (condenser assembly A) In Stock 1 Inquire EA
    E278-60S 015102021 24/40SafetyVAP Model R-200A, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly A) In Stock 1 Inquire EA
    E278-61 015102055 24/40SafetyVAP Model R-200V, Advanced, with Servo-Jack and Bath (condenser assembly V) In Stock 1 Inquire EA
    E278-61S 015102071 24/40SafetyVAP Model R-200V, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly V) In Stock 1 Inquire EA
    E278-62 015102101 24/40SafetyVAP Model R-200C, Advanced, with Servo-Jack and Bath (condenser assembly C) In Stock 1 Inquire EA
    E278-62S 015102128 24/40SafetyVAP Model R-200C, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly C) In Stock 1 Inquire EA
    E278-63 015102152 24/40SafetyVAP Model R-200S, Advanced, with Servo-Jack and Bath (condenser assembly S) In Stock 1 Inquire EA
    E278-63S 015102179 24/40SafetyVAP Model R-200S, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-64 015102209 24/40SafetyVAP Model R-200E, Advanced, with Servo-Jack and Bath (condenser assembly E) In Stock 1 Inquire EA
    E278-64S 015102225 24/40SafetyVAP Model R-200E, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly E) In Stock 1 Inquire EA
    E278-65 015102250 24/40SafetyVap Model R-200CR, Advanced, with Servo-Jack and Bath (condenser assembly CR) In Stock 1 Inquire EA
    E278-65S 015102276 24/40SafetyVap Model R-200CR, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR) In Stock 1 Inquire EA
    E278-66 015102306 29/42SafetyVAP Model R-200A, Advanced, with Servo-Jack and Bath (condenser assembly A) In Stock 1 Inquire EA
    E278-66S 015102322 29/42SafetyVAP Model R-200A, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly A) In Stock 1 Inquire EA
    E278-67 015102357 29/42SafetyVAP Model R-200V, Advanced, with Servo-Jack and Bath (condenser assembly V) In Stock 1 Inquire EA
    E278-67S 015102373 29/42SafetyVAP Model R-200V, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly V) In Stock 1 Inquire EA
    E278-68 015102403 29/42SafetyVAP Model R-200C, Advanced, with Servo-Jack and Bath (condenser assembly C) In Stock 1 Inquire EA
    E278-68S 015102420 29/42SafetyVAP Model R-200C, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly C) In Stock 1 Inquire EA
    E278-69 015102454 29/42SafetyVAP Model R-200S, Advanced, with Servo-Jack and Bath (condenser assembly S) In Stock 1 Inquire EA
    E278-69S 015102471 29/42SafetyVAP Model R-200S, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-70 015102501 29/42SafetyVAP Model R-200E, Advanced, with Servo-Jack and Bath (condenser assembly E) In Stock 1 Inquire EA
    E278-70S 015102527 29/42SafetyVAP Model R-200E, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly E) In Stock 1 Inquire EA
    E278-71 015102251 29/42SafetyVap Model R-200CR, Advanced, with Servo-Jack and Bath (condenser assembly CR) In Stock 1 Inquire EA
    E278-71S 015102578 29/42SafetyVap Model R-200CR, Advanced, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR) In Stock 1 Inquire EA

    Options

    Cat No Vendor Part No Description Qty/UOM Price Qty UOM
    E278-56 015688084 Heating Bath, Model B-490 In Stock 1 Inquire EA
    E278-50 015680610 Safety Shield for Model R-200 SafetyVap Evaporators In Stock 1 Inquire EA
    E278-51 015680709 Vacuum Controller, Model V-800, 120V In Stock 1 Inquire EA
    E278-52 015680636 Vacuum Controller with Auto Probe, Model V-805, 120V In Stock 1 Inquire EA
    E278-53 015680661 Communication Cable and Mounting Bracket for V-800/805 to R-200/205 In Stock 1 Inquire EA
    E278-54 015680679 Auto Probe for Model V-805 Vacuum Controller In Stock 1 Inquire EA
    E278-55 015680687 Remote Control, Model RC-80 for Vacuum Controller Models V800/V805 In Stock 1 Inquire EA
