Buchi SafetyVAP® Rotary Evaporation Systems, Model R-205

home > evaporators > buchi safetyvap® rotary evaporation systems, model r-205

Email Print Recently Viewed

Buchi SafetyVap® Rotary Evaporation Systems, Model R-205 Advanced

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional

Brinkmann Bottletop Dispensers

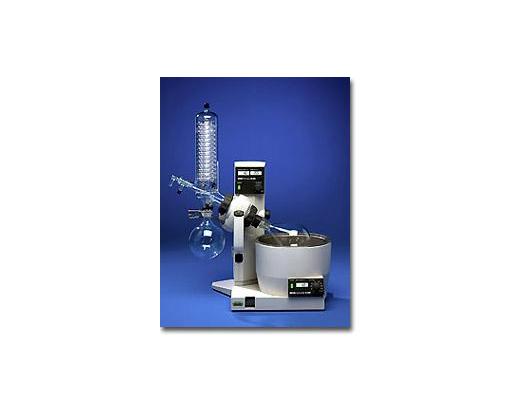

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-205

For 50mL to 3000mL flasks

6 glass assemblies

Heating bath +20°C to +180°C

Digital vapor temperature display

The SafetyVap Model R-205 includes a display for vapor temperature and the flask rotation speed. The digital heating bath can be adjusted from +20 to +180°C. The motorized quick-action jack is easily activated at the touch of a button.

Proven Advantages	Exclusive Advantages
System components from the same manufacturer-SafetyVap, vacuum sources, Vacuum Controller and Recirculating Chiller	With a footprint of only 0.14m², the new Buchi SafetyVap needs 33% less space than the previous SafetyVap line.
Practical combi-clip for easy removal of evaporation flask	The quick-action jack is activated by the press of a button. In case of power failure, the jack can be lifted manually
The under-pan heating element facilitates easy cleaning of the heating pan	The sealing system is made of PTFE/glass and resistant to chemicals. It is significantly longer-lasting, thereby reducing running-costs and maintenance time
PLASTIC+GLAS reduces glass breakage and protects the user	An optimized condenser with a steeper elevation angle for small volume flasks. The centralized connections prevent tangled hoses
Modular construction and the six standard glass assemblies provide convenience and flexibility	The heating bath has a corrosion-resistant PTFE coating. The wider temperature range, from +20 to +180°C, makes the SafetyVap more suitable for high-boiling solvents. The bath also has a digital temperature display.
All glass components are made of high-quality borosilicate 3.3	The new Buchi Vacuum Controller is designed to integrate optimally with the SafetyVap, and it is available in two models to meet individual needs.
The insulated heating bath protects against burns and lowers energy consumption	The new SafetyVap, complete with insulated heating bath, offers maximum safety. Additional safety options include PLASTIC+GLAS coated glass components and a protective shield.
The new long-lasting seals reduce running-costs and maintenance time	Total Flexibility! The modular construction of the two basic models and two Vacuum Controllers make up to six possible configurations to suit your exact needs. Six glass assemblies are available for various applications. Remote control via cable is also an option.

Specifications

Technical Data for Model R-205

Operating Voltage	100V, 120V, 230V
Frequency	50/60 Hz
Power Consumption	120 W
Rotation Speed	20-280 rpm
Weight	16-18 kg
Dimensions (cm)	544 x 697 x 367 (LxHxD)
Approvals	UL, CSA, CE

Technical Data, Heating Bath Model B-490

Power	120V, 230V - 50/60Hz - 1400W
Regulation Range	20-180°C
Regulation Precision	+/- 1
Bath Size	4L
Flask Sizes	50-3000mL
Temperature Display	20-18°C
Weight	3.3 kg
Dimensions (cm)	280 x 191 x 250 (LxHxD)
Approvals	UL, CSA, CE

Six condenser assemblies allow you to customize glasssware to match your needs. All glassware can be interchanged among all SafetyVAP^TM models for:
Simple solvent distillation
Low-boiling-point solvent stripping

Hard-to-handle materials that bump and foam

Condenser Assembly A
Description:	Diagonally positioned tap-water-cooled condenser
Applications:	Simple solvent distillations
Feature:	Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask

Condenser Assembly S
Description:	Vertical tap-water-cooled condenser with Teflon® reflux valve
Application:	Distillation of high-boiling-point solvents and reflux reactions
Features:	Continuous feed can be used simultaneously with optional vapor temperature sensor. Can be used with optional Soxhlet extractor for solid/liquid extractions.

Condenser Assembly V
Description:	Vertical tap-water-cooled condenser
Application:	Distillation of high-boiling point solvents (>100°C)
Features:	Continuous feed of volumes exceeding capacity of evaporating flask. Continuous feed can be used simultaneously with optional vapor temperature sensor.

Condenser Assembly E
Description:	Descending condenser assembly with expansion vessel
Application:	Ideal for materials that bump and foam. Expansion vessel prevents carryover to receiving flask. Not recommended for high-boiling solvents.
Feature:	Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask.

Condenser Assembly C with continuous feed
Description:	Two-piece cold-trap condenser using mechanical refrigeration or dry ice and acetone as a coolant.
Application:	Distillation of low-boiling solvents.
Feature:	Colder condensing surface. Continuous feed of volumes exceeding capacity of evaporating flask.

Condenser Assembly CR
Description:	Two-piece cold-trap condenser with Teflon® reflux valve. Uses mechanical refrigeration or dry ice and acetone as a coolant.
Application:	Distillation of low-boiling solvents and reflux reactions
Features:	Colder condensing surface. Inlet feed tube permits continuous feed of volumes exceeding capacity of the evaporating flask.

Ordering Info

Cat No	Vendor Part No	STJ	Description	Qty	Price	Qty
E278-2	015104007	24/40	SafetyVAP Model R-205A, with Servo-Jack and Bath (condenser assembly A)	In Stock	1	Inquire	EA
E278-2S	015104023	24/40	SafetyVAP Model R-205A, with Servo-Jack and Bath, with Safety Shield (condenser assembly A)	In Stock	1	Inquire	EA
E278-3	015104058	24/40	SafetyVAP Model R-205V, with Servo-Jack and Bath (condenser assembly V)	In Stock	1	Inquire	EA
E278-3S	015104074	24/40	SafetyVAP Model R-205V, with Servo-Jack and Bath, with Safety Shield (condenser assembly V)	In Stock	1	Inquire	EA
E278-4	015104104	24/40	SafetyVAP Model R-205C, with Servo-Jack and Bath (condenser assembly C)	In Stock	1	Inquire	EA
E278-4S	015104121	24/40	SafetyVAP Model R-205C, with Servo-Jack and Bath, with Safety Shield (condenser assembly C)	In Stock	1	Inquire	EA
E278-6	015104155	24/40	SafetyVAP Model R-205S, with Servo-Jack and Bath (condenser assembly S)	In Stock	1	Inquire	EA
E278-6S	015104171	24/40	SafetyVAP Model R-205S, with Servo-Jack and Bath, with Safety Shield (condenser assembly S)	In Stock	1	Inquire	EA
E278-5	015104201	24/40	SafetyVAP Model R-205E, with Servo-Jack and Bath (condenser assembly E)	In Stock	1	Inquire	EA
E278-5S	015104228	24/40	SafetyVAP Model R-205E, with Servo-Jack and Bath, with Safety Shield (condenser assembly E)	In Stock	1	Inquire	EA
E278-7	015104252	24/40	SafetyVAP Model R-205CR, with Servo-Jack and Bath(condenser assembly CR)	In Stock	1	Inquire	EA
E278-7S	015104279	24/40	SafetyVAP Model R-205CR, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR)	In Stock	1	Inquire	EA
E278-8	015104309	29/42	SafetyVAP Model R-205A, with Servo-Jack and Bath (condenser assembly A)	In Stock	1	Inquire	EA
E278-8S	015104325	29/42	SafetyVAP Model R-205A, with Servo-Jack and Bath, with Safety Shield (condenser assembly A)	In Stock	1	Inquire	EA
E278-9	015104350	29/42	SafetyVAP Model R-205V, with Servo-Jack and Bath (condenser assembly V)	In Stock	1	Inquire	EA
E278-9S	015104376	29/42	SafetyVAP Model R-205V, with Servo-Jack and Bath, with Safety Shield (condenser assembly V)	In Stock	1	Inquire	EA
E278-10	015104406	29/42	SafetyVAP Model R-205C, with Servo-Jack and Bath (condenser assembly C)	In Stock	1	Inquire	EA
E278-10S	015104422	29/42	SafetyVAP Model R-205C, with Servo-Jack and Bath, with Safety Shield (condenser assembly C)	In Stock	1	Inquire	EA
E278-11	015104457	29/42	SafetyVAP Model R-205S, with Servo-Jack and Bath (condenser assembly S)	In Stock	1	Inquire	EA
E278-11S	015104473	29/42	SafetyVAP Model R-205S, with Servo-Jack and Bath, with Safety Shield (condenser assembly S)	In Stock	1	Inquire	EA
E278-12	015104503	29/42	SafetyVAP Model R-205E, with Servo-Jack and Bath (condenser assembly E)	In Stock	1	Inquire	EA
E278-12S	015104520	29/42	SafetyVAP Model R-205E, with Servo-Jack and Bath, with Safety Shield (condenser assembly E)	In Stock	1	Inquire	EA
E278-13	015104554	29/42	SafetyVAP Model R-205CR, with Servo-Jack and Bath(condenser assembly CR)	In Stock	1	Inquire	EA
E278-13S	015104571	29/42	SafetyVAP Model R-205CR, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR)	In Stock	1	Inquire	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
E278-56	015688084	Heating Bath, Model B-490	In Stock	1	Inquire	EA
E278-50	015680610	Safety Shield for Model R-205 SafetyVap Evaporators	In Stock	1	Inquire	EA
E278-51	015680709	Vacuum Controller, Model V-800, 120V	In Stock	1	Inquire	EA
E278-52	015680636	Vacuum Controller with Auto Probe, Model V-805, 120V	In Stock	1	Inquire	EA
E278-53	015680661	Communication Cable and Mounting Bracket for V-800/805 to R-200/205	In Stock	1	Inquire	EA
E278-54	015680679	Auto Probe for Model V-805 Vacuum Controller	In Stock	1	Inquire	EA
E278-55	015680687	Remote Control, Model RC-80 for Vacuum Controller Models V800/805	In Stock	1	Inquire	EA
