Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200

home > evaporators > buchi safetyvap® rotary evaporation systems, model r-200
Print Recently Viewed

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional

Brinkmann Bottletop Dispensers

Brinkmann Bottletop Dispensers

Brinkmann Bottletop Buret

Brinkmann Bottletop Buret

Bouffant Cap, Class 100

Bouffant Cap, Class 100

Bottle, Square Tablet

Bottle, Square Tablet

Bottle, Serum, KG-35 Borosilicate Glass, Aluminum Seal, without closure, Kimble

Bottle, Serum, KG-35 Borosilicate Glass, Aluminum Seal, without closure, Kimble

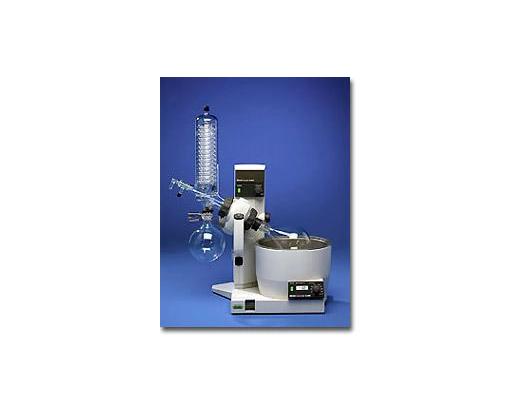

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
View Larger
Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200

  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200

  • For 50mL to 3000mL flasks
  • 6 Glass Assemblies
  • Heating Bath +20°C to +180°C

    The fully equipped, inexpensive SafetyVap Model R-200 meets basic needs. The digital heating bath can be adjusted from +20 to 180°C. the motorized quick-action jack is easily activated at the touch of a button.






































    Proven AdvantagesExclusive Advantages
    System components from the same manufacturer-SafetyVap, vacuum sources, Vacuum Controller and Recirculating ChillerWith a footprint of only 0.14m2, the new Buchi SafetyVap needs 33% less space than the previous Safety Vap line.
    Practical combi-clip for easy removal of evaporation flaskThe quick-action jack is activated by the press of a button. In case of power failure, the jack can be lifted manually
    The under-pan heating element facilitates easy cleaning of the heating panThe sealing system is made of PTFE/glass and resistant to chemicals. It is significantly longer-lasting, thereby reducing running-costs and maintenance time
    PLASTIC+GLAS reduces glass breakage and protects the userAn optimized condenser with a steeper elevation angle for small volume flasks. The centralized connections prevent tangled hoses
    Modular construction and the six standard glass assemblies provide convenience and flexibilityThe heating bath has a corrosion-resistant PTFE coating. The wider temperature range, from +20 to +180°C, makes the SafetyVap more suitable for high-boiling solvents. The bath also has a digital temperature display.
    All glass components are made of high-quality borosilicate 3.3The new Buchi Vacuum Controller is designed to integrate optimally with the SafetyVap, and it is available in two models to meet individual needs.
    The insulated heating bath protects against burns and lowers energy consumptionThe new SafetyVap, complete with insulated heating bath, offers maximum safety. Additional safety options include PLASTIC+GLAS coated glass components and a protective shield.
    The new long-lasting seals reduce running-costs and maintenance timeTotal Flexibility! The modular construction of the two basic models and two Vacuum Controllers make up to six possible configurations to suit your exact needs. Six glass assemblies are available for various applications. Remote control via cable is also an option.


    •

    Technical Data for Model R-200
    Operating Voltage 100V, 120V, 230V
    Frequency 50/60 Hz
    Power Consumption 120 W
    Rotation Speed 20-280 rpm
    Weight 16-18 kg
    Dimensions (cm) 544 x 697 x 367 (LxHxD)
    Approvals UL, CSA, CE
    Technical Data, Heating Bath Model B-490
    Power 120V, 230V - 50/60Hz - 1400W
    Regulation Range 20-180°C
    Regulation Precision +/- 1
    Bath Size 4L
    Flask Sizes 50-3000mL
    Temperature Display 20-18°C
    Weight 3.3 kg
    Dimensions (cm) 280 x 191 x 250 (LxHxD)
    Approvals UL, CSA, CE
    Six condenser assemblies allow you to customize glasssware to match your needs. All glassware can be interchanged among all SafetyVAPTM models for:
  • Simple solvent distillation
  • Low-boiling-point solvent stripping
  • Hard-to-handle materials that bump and foam
    Condenser Assembly A
    Description: Diagonally positioned tap-water-cooled condenser
    Applications: Simple solvent distillations
    Feature: Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask
    Condenser Assembly S
    Description: Vertical tap-water-cooled condenser with Teflon® reflux valve
    Application: Distillation of high-boiling-point solvents and reflux reactions
    Features: Continuous feed can be used simultaneously with optional vapor temperature sensor. Can be used with optional Soxhlet extractor for solid/liquid extractions.
    Condenser Assembly V
    Description: Vertical tap-water-cooled condenser
    Application: Distillation of high-boiling point solvents (>100°C)
    Features: Continuous feed of volumes exceeding capacity of evaporating flask. Continuous feed can be used simultaneously with optional vapor temperature sensor.
    Condenser Assembly E
    Description: Descending condenser assembly with expansion vessel
    Application: Ideal for materials that bump and foam. Expansion vessel prevents carryover to receiving flask. Not recommended for high-boiling solvents.
    Feature: Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask.
    Condenser Assembly C with continuous feed
    Description: Two-piece cold-trap condenser using mechanical refrigeration or dry ice and acetone as a coolant.
    Application: Distillation of low-boiling solvents.
    Feature: Colder condensing surface. Continuous feed of volumes exceeding capacity of evaporating flask.
    Condenser Assembly CR
    Description: Two-piece cold-trap condenser with Teflon® reflux valve. Uses mechanical refrigeration or dry ice and acetone as a coolant.
    Application: Distillation of low-boiling solvents and reflux reactions
    Features: Colder condensing surface. Inlet feed tube permits continuous feed of volumes exceeding capacity of the evaporating flask.



































    • Proven AdvantagesExclusive Advantages
    System components from the same manufacturer-SafetyVap, vacuum sources, Vacuum Controller and Recirculating ChillerWith a footprint of only 0.14m2, the new Buchi SafetyVap needs 33% less space than the previous Safety Vap line.
    Practical combi-clip for easy removal of evaporation flaskThe quick-action jack is activated by the press of a button. In case of power failure, the jack can be lifted manually
    The under-pan heating element facilitates easy cleaning of the heating panThe sealing system is made of PTFE/glass and resistant to chemicals. It is significantly longer-lasting, thereby reducing running-costs and maintenance time
    PLASTIC GLAS reduces glass breakage and protects the userAn optimized condenser with a steeper elevation angle for small volume flasks. The centralized connections prevent tangled hoses
    Modular construction and the six standard glass assemblies provide convenience and flexibilityThe heating bath has a corrosion-resistant PTFE coating. The wider temperature range, from 20 to 180°C, makes the SafetyVap more suitable for high-boiling solvents. The bath also has a digital temperature display.
    All glass components are made of high-quality borosilicate 3.3The new Buchi Vacuum Controller is designed to integrate optimally with the SafetyVap, and it is available in two models to meet individual needs.
    The insulated heating bath protects against burns and lowers energy consumptionThe new SafetyVap, complete with insulated heating bath, offers maximum safety. Additional safety options include PLASTIC GLAS coated glass components and a protective shield.
    The new long-lasting seals reduce running-costs and maintenance timeTotal Flexibility! The modular construction of the two basic models and two Vacuum Controllers make up to six possible configurations to suit your exact needs. Six glass assemblies are available for various applications. Remote control via cable is also an option.


    Ordering Info

    Cat No Vendor Part No STJDescription Qty Price Qty UOM
    E278-25S 015101024 24/40SafetyVAP Model R-200A, with Servo-Jack and Bath, with Safety Shield (condenser assembly A) In Stock 1 Inquire EA
    E278-26 015101059 24/40SafetyVAP Model R-200V, with Servo-Jack and Bath (condenser assembly V) In Stock 1 Inquire EA
    E278-26S 015101075 24/40SafetyVAP Model R-200V, with Servo-Jack and Bath, with Safety Shield (condenser assembly V) In Stock 1 Inquire EA
    E278-27 015101105 24/40SafetyVAP Model R-200C, with Servo-Jack and Bath (condenser assembly C) In Stock 1 Inquire EA
    E278-27S 015101121 24/40SafetyVAP Model R-200C, with Servo-Jack and Bath, with Safety Shield (condenser assembly C) In Stock 1 Inquire EA
    E278-28 015101156 24/40SafetyVAP Model R-200S, with Servo-Jack and Bath (condenser assembly S) In Stock 1 Inquire EA
    E278-28S 015101172 24/40SafetyVAP Model R-200S, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-29 015101202 24/40SafetyVAP Model R-200E, with Servo-Jack and Bath (condenser assembly E) In Stock 1 Inquire EA
    E278-29S 015101229 24/40SafetyVAP Model R-200E, with Servo-Jack and Bath, with Safety Shield (condenser assembly E) In Stock 1 Inquire EA
    E278-30 015101253 24/40SafetyVAP Model R-200CR, with Servo-Jack and Bath (condenser assembly CR) In Stock 1 Inquire EA
    E278-30S 015101270 24/40SafetyVAP Model R-200CR, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR) In Stock 1 Inquire EA
    E278-31 015101300 29/42SafetyVAP Model R-200A, with Servo-Jack and Bath (condenser assembly A) In Stock 1 Inquire EA
    E278-31S 015101326 29/42SafetyVAP Model R-200A, with Servo-Jack and Bath, with Safety Shield (condenser assembly A) In Stock 1 Inquire EA
    E278-32 015101351 29/42SafetyVAP Model R-200V, with Servo-Jack and Bath (condenser assembly V) In Stock 1 Inquire EA
    E278-32S 015101377 29/42SafetyVAP Model R-200V, with Servo-Jack and Bath, with Safety Shield (condenser assembly V) In Stock 1 Inquire EA
    E278-33 015101407 29/42SafetyVAP Model R-200C, with Servo-Jack and Bath (condenser assembly C) In Stock 1 Inquire EA
    E278-33S 015101423 29/42SafetyVAP Model R-200C, with Servo-Jack and Bath, with Safety Shield (condenser assembly C) In Stock 1 Inquire EA
    E278-34 015101458 29/42SafetyVAP Model R-200S, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-34S 015101474 29/42SafetyVAP Model R-200S, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-35 015101504 29/42SafetyVAP Model R-200E, with Servo-Jack and Bath (condenser assembly E) In Stock 1 Inquire EA
    E278-35S 015101521 29/42SafetyVAP Model R-200E, with Servo-Jack and Bath, with Safety Shield (condenser assembly E) In Stock 1 Inquire EA
    E278-36 015101555 29/42SafetyVAP Model R-200CR, with Servo-Jack and Bath (condenser assembly CR) In Stock 1 Inquire EA
    E278-36S 015101571 29/42SafetyVAP Model R-200CR, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR) In Stock 1 Inquire EA
    E278-1 015100001 24/40SafetyVAP Model R-200A, with Servo-Jack(condenser Assembly A) In Stock 1 Inquire EA
    E278-15 015100028 24/40SafetyVAP Model R-200V, with Servo-Jack (condenser assembly V) In Stock 1 Inquire EA
    E278-17 015100044 24/40SafetyVAP Model R-200C, with Servo-Jack (condenser assembly C) In Stock 1 Inquire EA
    E278-19 015100087 24/40SafetyVap Model R-200S, with Servo-Jack (condenser assembly S) In Stock 1 Inquire EA
    E278-21 015100109 24/40SafetyVAP Model R-200E, with Servo-Jack (condenser assembly E) In Stock 1 Inquire EA
    E278-23 015100125 24/40SafetyVAP Model R-200, with Servo-Jack (condenser assembly CR) In Stock 1 Inquire EA
    E278-14 015100141 29/42SafetyVAP Model R-200A, with Servo-Jack(condenser Assembly A) In Stock 1 Inquire EA
    E278-16 015100168 29/42SafetyVAP Model R-200V, with Servo-Jack (condenser assembly V) In Stock 1 Inquire EA
    E278-18 015100184 29/42SafetyVAP Model R-200C, with Servo-Jack (condenser assembly C) In Stock 1 Inquire EA
    E278-20 015100206 29/42SafetyVap Model R-200S, with Servo-Jack (condenser assembly S) In Stock 1 Inquire EA
    E278-22 015100222 29/42SafetyVAP Model R-200E, with Servo-Jack (condenser assembly E) In Stock 1 Inquire EA
    E278-24 015100249 29/42SafetyVAP Model R-200, with Servo-Jack (condenser assembly CR) In Stock 1 Inquire EA

    Options

    Cat No Vendor Part No Description Qty/UOM Price Qty UOM
    E278-56 015688084 Heating Bath, Model B-490 In Stock 1 Inquire EA
    E278-50 015680610 Safety Shield for Model R-200 SafetyVap Evaporators In Stock 1 Inquire EA
    E278-51 015680709 Vacuum Controller, Model V-800, 120V In Stock 1 Inquire EA
    E278-52 015680636 Vacuum Controller with Auto Probe, Model V-805, 120V In Stock 1 Inquire EA
    E278-53 015680661 Communication Cable and Mounting Bracket for V-800/805 to R-200/205 In Stock 1 Inquire EA
    E278-54 015680679 Auto Probe for Model V-805 Vacuum Controller In Stock 1 Inquire EA
    E278-55 015680687 Remote Control, Model RC-80 for Vacuum Controller Models V800/V805 In Stock 1 Inquire EA
