Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional

home > evaporators > buchi safetyvap® rotary evaporation systems, model r-200 professional
Print Recently Viewed

Brinkmann Bottletop Dispensers

Brinkmann Bottletop Dispensers

Brinkmann Bottletop Buret

Brinkmann Bottletop Buret

Bouffant Cap, Class 100

Bouffant Cap, Class 100

Bottle, Square Tablet

Bottle, Square Tablet

Bottle, Serum, KG-35 Borosilicate Glass, Aluminum Seal, without closure, Kimble

Bottle, Serum, KG-35 Borosilicate Glass, Aluminum Seal, without closure, Kimble

Bottle, Milk Dilution, Square, Glass, with Screw Cap, Kimble

Bottle, Milk Dilution, Square, Glass, with Screw Cap, Kimble

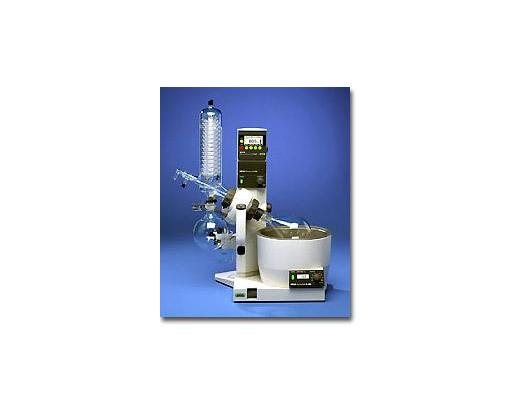

Buchi SafetyVAP® Rotary Evaporation Systems, M
View Larger
Buchi SafetyVAP® Rotary Evaporation Systems, M
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional
  • Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional

  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name

Buchi SafetyVAP® Rotary Evaporation Systems, Model R-200 Professional

  • For 50mL to 3000mL flasks
  • 6 glass assemblies
  • Heating Bath +20 to 180°C
  • Vacuum Controller V-805 included

    The SafetyVap Model R-200 Professional with an integrated Vacuum Controller V-805 offers pressure gradients, automatic distillations down to dryness, a repeat function and much more. Up to five distillation programs can be stored. Rotation speed and the quick-action jack can also be operated using the optional Remote Control.






































    Proven AdvantagesExclusive Advantages
    System components from the same manufacturer-SafetyVap, vacuum sources, Vacuum Controller and Recirculating ChillerWith a footprint of only 0.14m2, the new Buchi SafetyVap needs 33% less space than the previous SafetyVap line.
    Practical combi-clip for easy removal of evaporation flaskThe quick-action jack is activated by the press of a button. In case of power failure, the jack can be lifted manually
    The under-pan heating element facilitates easy cleaning of the heating panThe sealing system is made of PTFE/glass and resistant to chemicals. It is significantly longer-lasting, thereby reducing running-costs and maintenance time
    PLASTIC+GLAS reduces glass breakage and protects the userAn optimized condenser with a steeper elevation angle for small volume flasks. The centralized connections prevent tangled hoses
    Modular construction and the six standard glass assemblies provide convenience and flexibilityThe heating bath has a corrosion-resistant PTFE coating. The wider temperature range, from +20 to +180°C, makes the SafetyVap more suitable for high-boiling solvents. The bath also has a digital temperature display.
    All glass components are made of high-quality borosilicate 3.3The new Buchi Vacuum Controller is designed to integrate optimally with the SafetyVap, and it is available in two models to meet individual needs.
    The insulated heating bath protects against burns and lowers energy consumptionThe new SafetyVap, complete with insulated heating bath, offers maximum safety. Additional safety options include PLASTIC+GLAS coated glass components and a protective shield.
    The new long-lasting seals reduce running-costs and maintenance timeTotal Flexibility! The modular construction of the two basic models and two Vacuum Controllers make up to six possible configurations to suit your exact needs. Six glass assemblies are available for various applications. Remote control via cable is also an option.
    •

    Technical Data for Model R-200 Professional
    Operating Voltage 100V, 120V, 230V
    Frequency 50/60 Hz
    Power Consumption 120 W
    Rotation Speed 20-280 rpm
    Weight 16-18 kg
    Dimensions (cm) 544 x 697 x 367 (LxHxD)
    Approvals UL, CSA, CE
    Technical Data, Heating Bath Model B-490
    Power 120V, 230V - 50/60Hz - 1400W
    Regulation Range 20-180°C
    Regulation Precision +/- 1
    Bath Size 4L
    Flask Sizes 50-3000mL
    Temperature Display 20-18°C
    Weight 3.3 kg
    Dimensions (cm) 280 x 191 x 250 (LxHxD)
    Approvals UL, CSA, CE
    Six condenser assemblies allow you to customize glasssware to match your needs. All glassware can be interchanged among all SafetyVAPTM models for:
  • Simple solvent distillation
  • Low-boiling-point solvent stripping
  • Hard-to-handle materials that bump and foam
    Condenser Assembly A
    Description: Diagonally positioned tap-water-cooled condenser
    Applications: Simple solvent distillations
    Feature: Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask
    Condenser Assembly S
    Description: Vertical tap-water-cooled condenser with Teflon® reflux valve
    Application: Distillation of high-boiling-point solvents and reflux reactions
    Features: Continuous feed can be used simultaneously with optional vapor temperature sensor. Can be used with optional Soxhlet extractor for solid/liquid extractions.
    Condenser Assembly V
    Description: Vertical tap-water-cooled condenser
    Application: Distillation of high-boiling point solvents (>100°C)
    Features: Continuous feed of volumes exceeding capacity of evaporating flask. Continuous feed can be used simultaneously with optional vapor temperature sensor.
    Condenser Assembly E
    Description: Descending condenser assembly with expansion vessel
    Application: Ideal for materials that bump and foam. Expansion vessel prevents carryover to receiving flask. Not recommended for high-boiling solvents.
    Feature: Inlet feed tube permits continuous feed of volumes exceeding capacity of evaporating flask.
    Condenser Assembly C with continuous feed
    Description: Two-piece cold-trap condenser using mechanical refrigeration or dry ice and acetone as a coolant.
    Application: Distillation of low-boiling solvents.
    Feature: Colder condensing surface. Continuous feed of volumes exceeding capacity of evaporating flask.
    Condenser Assembly CR
    Description: Two-piece cold-trap condenser with Teflon® reflux valve. Uses mechanical refrigeration or dry ice and acetone as a coolant.
    Application: Distillation of low-boiling solvents and reflux reactions
    Features: Colder condensing surface. Inlet feed tube permits continuous feed of volumes exceeding capacity of the evaporating flask.

    • Ordering Info

    Cat No Vendor Part No STJDescription Qty Price Qty UOM
    E278-72 015103001 24/40SafetyVAP Model R-200A Professional, with Servo-Jack and Bath (condenser assembly A) In Stock 1 Inquire EA
    E278-72S 015103027 24/40SafetyVap Model R-200A Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly A) In Stock 1 Inquire EA
    E278-73 015103051 24/40SafetyVAP Model R-200V, Professional, with Servo-Jack and Bath (condenser assembly V) In Stock 1 Inquire EA
    E278-73S 015103078 24/40SafetyVAP Model R-200V, Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly V) In Stock 1 Inquire EA
    E278-74 015103108 24/40SafetyVAP Model R-200C, Professional, with Servo-Jack and Bath (condenser assembly C) In Stock 1 Inquire EA
    E278-74S 015103124 24/40SafetyVAP Model R-200C, Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly C) In Stock 1 Inquire EA
    E278-75 015103159 24/40SafetyVAP Model R-200S, Professional, with Servo-Jack and Bath (condenser assembly S) In Stock 1 Inquire EA
    E278-75S 015103175 24/40SafetyVAP Model R-200S Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-76 015103205 24/40SafetyVAP Model R-200E, Professional, with Servo-Jack and Bath (condenser assembly E) In Stock 1 Inquire EA
    E278-76S 015103221 24/40SafetyVAP Model R-200E, Professional, with Servo-Jack and Bath, with Safety Shield (with condenser assembly E) In Stock 1 Inquire EA
    E278-77 015103256 24/40SafetyVAP Model R-200CR, Professional, with Servo-Jack and Bath (condenser assembly CR) In Stock 1 Inquire EA
    E278-77S 015103272 24/40SafetyVAP Model R-200CR, Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR) In Stock 1 Inquire EA
    E278-78 015103302 29/42SafetyVAP Model R-200A Professional, with Servo-Jack and Bath (condenser assembly A) In Stock 1 Inquire EA
    E278-78S 015103329 29/42SafetyVap Model R-200A Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly A) In Stock 1 Inquire EA
    E278-79 015103507 29/42SafetyVAP Model R-200V, Professional, with Servo-Jack and Bath (condenser assembly V) In Stock 1 Inquire EA
    E278-79S 015103523 29/42SafetyVAP Model R-200V, Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly V) In Stock 1 Inquire EA
    E278-80 015103558 29/42SafetyVAP Model R-200C, Professional, with Servo-Jack and Bath (condenser assembly C) In Stock 1 Inquire EA
    E278-80S 015103574 29/42SafetyVAP Model R-200C, Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly C) In Stock 1 Inquire EA
    E278-81 015103604 29/42SafetyVAP Model R-200S, Professional, with Servo-Jack and Bath (condenser assembly S) In Stock 1 Inquire EA
    E278-81S 015103621 29/42SafetyVAP Model R-200S Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly S) In Stock 1 Inquire EA
    E278-82 015103655 29/42SafetyVAP Model R-200E, Professional, with Servo-Jack and Bath (condenser assembly E) In Stock 1 Inquire EA
    E278-82S 015103671 29/42SafetyVAP Model R-200E, Professional, with Servo-Jack and Bath, with Safety Shield (with condenser assembly E) In Stock 1 Inquire EA
    E278-83 015103701 29/42SafetyVAP Model R-200CR, Professional, with Servo-Jack and Bath (condenser assembly CR) In Stock 1 Inquire EA
    E278-83S 015103728 29/42SafetyVAP Model R-200CR, Professional, with Servo-Jack and Bath, with Safety Shield (condenser assembly CR) In Stock 1 Inquire EA

    Options

    Cat No Vendor Part No Description Qty/UOM Price Qty UOM
    E278-56 015688084 Heating Bath, Model B-490 In Stock 1 Inquire EA
    E278-50 015680610 Safety Shield for Model R-200 SafetyVap Evaporators In Stock 1 Inquire EA
    E278-51 015680709 Vacuum Controller, Model V-800, 120V In Stock 1 Inquire EA
    E278-52 015680636 Vacuum Controller with Auto Probe, Model V-805, 120V In Stock 1 Inquire EA
    E278-53 015680661 Communication Cable and Mounting Bracket for V-800/805 to R-200/205 In Stock 1 Inquire EA
    E278-54 015680679 Auto Probe for Model V-805 Vacuum Controller In Stock 1 Inquire EA
    E278-55 015680687 Remote Control, Model RC-80 for Vacuum Controller Models V800/V805 In Stock 1 Inquire EA
