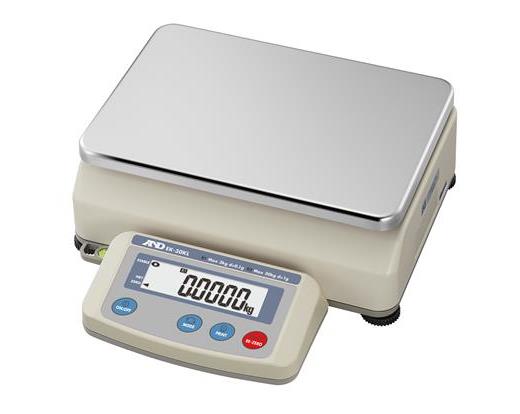

Balances, Bench Scale, Precision EK-L Series, A&D Weighing
EK-L Series No need to trade readability for capacity with the EK-L. Maintain 0.1g resolution when using heavy tare containers up to 15kg (33lbs) or 30kg (66lbs).
- Extends 0.1g readability of the EK family to 15kg
- Bright white backlit LCD
- Multiple weighing units: g, kg, oz, lb, ozt, % and comparator modes
- RS-232 standard
- Optional rechargeable battery pack
- Triple range for maximum performance (B137-38)
- 2-year warranty
| Catalog No. |
B137-37 |
B137-38 |
| Model No. |
EK-15KL |
EK-30KL |
| Capacity |
15kg / 33 lbs |
3kg / 6.6 lbs |
30kg / 66 lbs |
| Readability |
0.1g / 0.0005 lbs |
0.1g / 0.0005 lbs |
1g / 0.005 lbs |
Repeatability
(standard deviation) |
0.3g |
0.3g |
1g |
| Linearity |
±0.6g |
±0.6g |
±1g |
| Sensitivity drift |
±20 ppm /°C (10°C-30°C / 50°F-86°F) |
| Counting Mode |
Min. unit weight* |
0.1g |
| No. of samples |
5, 10, 25, 50 or 100 pieces |
| Percent Mode |
Min. % display |
0.1% |
| Min. 100% weight |
10g |
| Operating temperature range |
10°C-40°C / 50°F-104°F, less than 85% R.H. (non-condensing) |
| Battery life (on a full charge) |
Approximately 100 hours (at 25°C with backlight off) |
| Weighing pan size |
11.8 x 8.2 inches |
| Net weight |
Approx. 9.3 lbs |
Approx. 10.8 lbs |
Calibration weight
(not included) |
15kg |
30kg |
Standard accessories
(not included) |
AC adapter, Instruction Manual |
*Factory setting
