Balances, Analytical, Orion HR Series, A&D Weighing

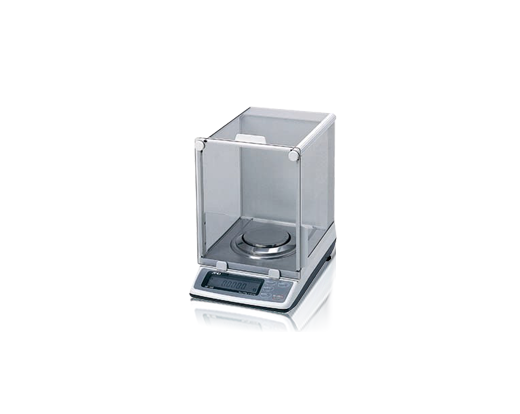

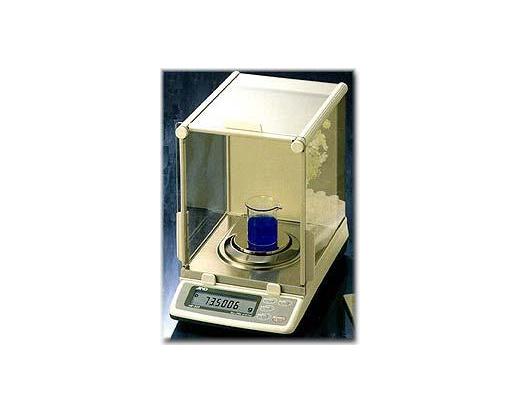

Orion Analytical HR Balance Series
The Orion Series balances provide many remarkable features at affordable prices. These easy-to-use analytical balances are durable, adapt to your environment, and provide great flexibility and resolution.
- Large Weighing Chamber holds up to a 250mm volumetric flask Wide Angle LCD Display
- Multi-Functional Weighing
- Standard Underhook
- GLP/LIMS/ISO Compliant
- Multi-Functional Weighing: %, Counting, Grams, mg. oz ozt, dwt, ct, mom, GN, t, TL Separate, Clearly Marked Operating Keys Full Range Tare
- Body & frame constructed of extra strong die-cast aluminum alloy
- HR-60 model only is legal-for-trade, Class II
| Catalog No |
B125-1(-31) |
B125-2(-32) |
B125-3(-33) |
B121-2 |
B121-6 |
| Model No |
HR-60(-C) |
HR-120(-C) |
HR-200(-C) |
HR-300i |
HR-202i |
| Percentage Min Div |
0.01%, 0.1% or 1% (auto prompt) |
| Counting Min Weight |
0.1 mg |
| Linearity |
|
±0.0002g |
|
0.0002mg |
0.0001/0.00002g |
| Repeatability/Std Dev |
|
0.0001g |
|
±0.0003mg |
±0.0002/±0.00003g |
| Stabilization Time |
|
3 seconds (typically) |
|
Approx. 3.5 sec. |
Approx. 3.5/8 seconds |
Sensitivity Drift
(10°-30°C) |
±2ppm/°C (when automatic self calibration is not used) |
| Display Refresh |
5 times per second/10 times per second |
| Pan Size |
Ø 85 mm/3.3 inches |
Ø 90 mm/3.6 inches |
| Physical Dimensions |
213(W) x 319(D) x 301(H)mm
8.4(W) x 12.6(D) x 11.9(H) inches |
217(W) x 442(D) x 316(H)mm
8.54(W) x 17.4(D) x 12.24(H) inches |
| Breeze Break Dimensions |
180(W) x 192(D) x 200 H)mm
7.1(W) x 7.5(D) x 7.9(H) inches |
164(W) x 148.5(D) x 251(H)mm
6.45(W) x 5.84(D) x 9.88(H) inches |
| Operating Temperature |
5°C to 40°C (41°F to 104°F), 85% RH or less (no condensation) |
| Weight |
Approximately 5.7kg/12.5 lb |
Approximately 8.0kg/17.6 lb |
| Power |
100, 120, 220, 240 VAC (AC Adaptor) 50Hz/60Hz
10 hr continuous operation w/rechargeable battery pack |
100, 120, 220, 240 VAC (AC Adapter)
50 Hz/60 Hz, 11 VA |
| Standard Accessories |
Manual, AC Adapter, Protective Cover |
WinCT in CD-ROM, Manual, AC Adapter |
| Ext. Cal. Mass (optional) |
50g |
100g |
200g |
300g/200g/100g |
200g/100g/50g/20g |
| Catalog No |
B125-1(-31) |
B125-2(-32) |
B125-3(-33) |
B121-2 |
B121-6 |
| Capacity/Resolution |
HR-60(-C) |
HR-120(-C) |
HR-200(-C) |
HR-300i |
HR-202i |
| Gram |
(g) |
60x0.0001 |
120x0.0001 |
210x0.0001 |
320x0.0001 |
220x0.0001/51x0.00001 |
| (mg) |
60000x0.1 |
120000x0.1 |
210000x0.1 |
320000x0.1 |
220000x0.1/51000x0.01 |
| Decimal Ounce (oz) |
2.1x0.000005 |
4.2x0.000005 |
7.4x0.000005 |
11.29x0.00001 |
7.76x0.00001/1.8x0.000001 |
| Troy Ounce (ozt) |
1.9x0.000005 |
3.8x0.000005 |
6.7x0.000005 |
10.3x0.00001 |
7.07x0.00001/1.64x0.000001 |
| Pennyweight (dwt) |
38x0.0001 |
77x0.0001 |
135x0.0001 |
199x0.0001 |
141.5x0.0001/32.8x0.00001 |
| Carat (ct) |
300x0.001 |
600x0.001 |
1050x0.001 |
1550x0.001 |
1100x0.001/255x0.0001 |
| Momme (mom) |
16x0.00005 |
32x0.00005 |
56x0.00005 |
82x0.0001 |
58.7x0.0001/13.6x0.00001 |
| Grain Unit (GN) |
925x0.002 |
1851x0.002 |
3240x0.002 |
4784x0.002 |
3395x0.002/787x0.0002 |
| Tola (t) |
5x0.00001 |
10x0.00001 |
18x0.00001 |
26x0.00001 |
18.8x0.00001/4.37x0.000001 |
| Tael (TL) |
1.5x0.000005 |
3.1x0.000005 |
5.5x0.000005 |
8.2x0.00001 |
5.87x0.00001/1.36x0.000001 |
Options
| Cat No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
| B125-5 |
Serial Interface (RS-232C) for HR-60, HR-120, HR-200 |
In Stock |
1 |
$186.00 |
|
EA |
| B125-12 |
20mA Current Loop Interface for HR-60, HR-120, HR-200 |
In Stock |
1 |
$130.00 |
|
EA |
| B125-21 |
NiCd Battery Pack for HR-60, HR-60-C, HR-120, HR-120-C, HR-200, HR-200-C only |
In Stock |
1 |
$495.00 |
|
EA |
| B125-6 |
Anti-Theft Device |
In Stock |
1 |
$90.00 |
|
EA |
| B121-25 |
Density Determination Kit |
In Stock |
1 |
$660.00 |
|
EA |
| B135-32 |
Rechargeable Battery Pack (external) |
In Stock |
1 |
$800.00 |
|
EA |
| B147-49 |
Universal Remote Display |
In Stock |
1 |
$315.00 |
|
EA |
| B128-24 |
Static Eliminator |
In Stock |
1 |
$1,300.00 |
|
EA |
| B147-50 |
Remote Controller |
In Stock |
1 |
$750.00 |
|
EA |
| B121-26 |
Storage/Carrying Case for HR-60, HR-120, HR-200 and HR-200-C versions only (While Supplies Last) |
In Stock |
1 |
Inquire |
|
EA |
| B147-55 |
HR AC Adapter (120V / 220V) - Standard with unit |
In Stock |
1 |
$50.00 |
|
EA |
| B121-10 |
HR-i Adapter (120V) - Standard with unit |
In Stock |
1 |
$45.00 |
|
EA |
| B121-28 |
AC Adapter (220V) HRi |
In Stock |
1 |
$65.00 |
|
EA |
| B126-11 |
USB to 25-pin RS-232 Converter |
In Stock |
1 |
$95.00 |
|
EA |
